SlimX 41
SlimX 41
SlimX 41
$4,299SlimX 41
Precision Active tracking. Featuring a discreet profile and black matte finish, it excels in virtual reality, Virtual production sets, ground truth for robotics and more.
Incredible Range. The Slimx 41 has an active marker range of more than 150’ (45m) with Active markers, all with discrete infrared wavelengths for 3D motion tracking in moderately-sized spaces.
PrimeX 41 compared to the SlimX 41

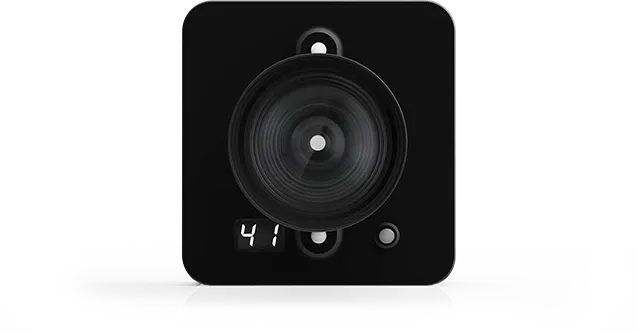

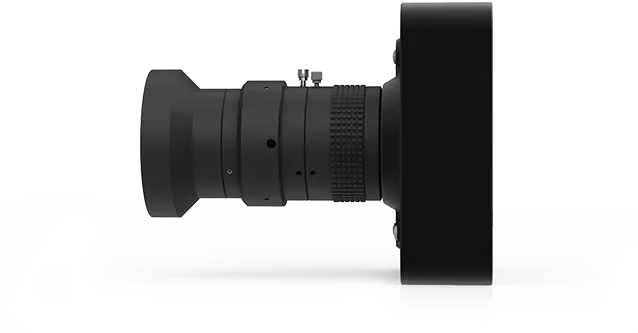

Small footprint, lightweight. The Slimx 41’s shallow profile, light weight and invisible IR illumination are perfect for applications which require a discreet tracking system such as location-based virtual reality and cinematic virtual production.
Slimx equals precision. Slimx cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.
Mix and match cameras. Systems can pair Slimx 41 cameras with any other Slimx, Primex or Prime cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.

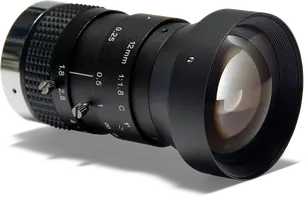

“Fast glass” lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Slimx 41’s standard 12mm lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data.
Choose your lens & Field of View. For volumes of different shapes and sizes, the Slimx 41 is available with a standard 12mm lens with a 51° x 51° Field of View (FOV), or optional 8.9mm lens with a wider 65° x 65° FOV, 16mm lens with a 39° x 39° FOV, or 25mm lens with a 25° x 25° FOV.
On-camera status indicator. Slimx cameras can keep users informed with definable color LED indicator. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
Full resolution grayscale reference video. All Slimx cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
External sync in/out, Genlock, and Time Code. Synchronize any SlimX, Prime and PrimeX cameras to any signal or source with the with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
eSync 2
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert system configuration for any space. OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Before Continuous Calibration
After Continuous Calibration
It's more than just cameras. Slimx cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The Slimx cameras and enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
Motive
OEM & computer vision Integration. Incorporate Slimx 41 cameras into OEM tracking or computer vision applications via the free , a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
SDK
Footnotes
Footnotes
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2. | Frame rate | Resolution | FOV (standard 24mm lens) | FOV (wide 18mm lens) |
300 fps | 4096×3072 | 51°×39° | 65°×51° | |
480 fps | 4096×1904 | 51°×25° | 65°×33° | |
840 fps | 2048×1072 | 51°×14° | 65°×19° | |
1000 fps | 2048×896 | 51°×12° | 65°×16° |
SlimX 41
$4,299SlimX 41
Image Sensor
Resolution
2048 × 2048
Native Frame Rate
180 Hz
Latency
5.5 ms
Tracking Performance & Range
Global Shutter
Default Speed
0.25 ms
Minimum Speed
0.01 ms
Maximum Speed
5.4 ms at 180 fps
Image Processing Types
Object
Segment
Raw Grayscale
MJPEG Grayscale

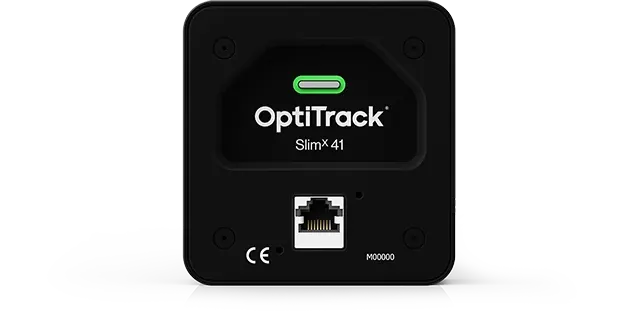

Connections
GigE/PoE data port
PoE power
Ethernet camera sync
Filter & Lens
Adjustable focus
Adjustable F-stop
Stock Lens
12 mm F#1.8
51° horizontal FOV
51° vertical FOV
51° horizontal FOV
51° vertical FOV
Optional Lens
8.9 mm F#1.8
65° horizontal FOV
65° vertical FOV
65° horizontal FOV
65° vertical FOV
Size & Weight
Width
3.50 inches(8.90 cm)
Height
3.66 inches(9.30 cm)
Depth
4.79 inches(12.20 cm)
Weight
1.4 pounds(0.66 kg)
Camera Body
Aim/Focus Assist Spotlights
Aluminum and Polycarbonate
1/4"-20 tripod thread (×2)
2 digit numeric LEDs status indicators
Single LED health and activity indicator
SlimX 41
SlimX 41
$4,299
Part number: SX41
Build your own motion capture system.
