$6,499PrimeX 41
Range and precision. The most precise large scale 3D measurement system in the world was built with Prime 41 technology. PrimeX made it better.

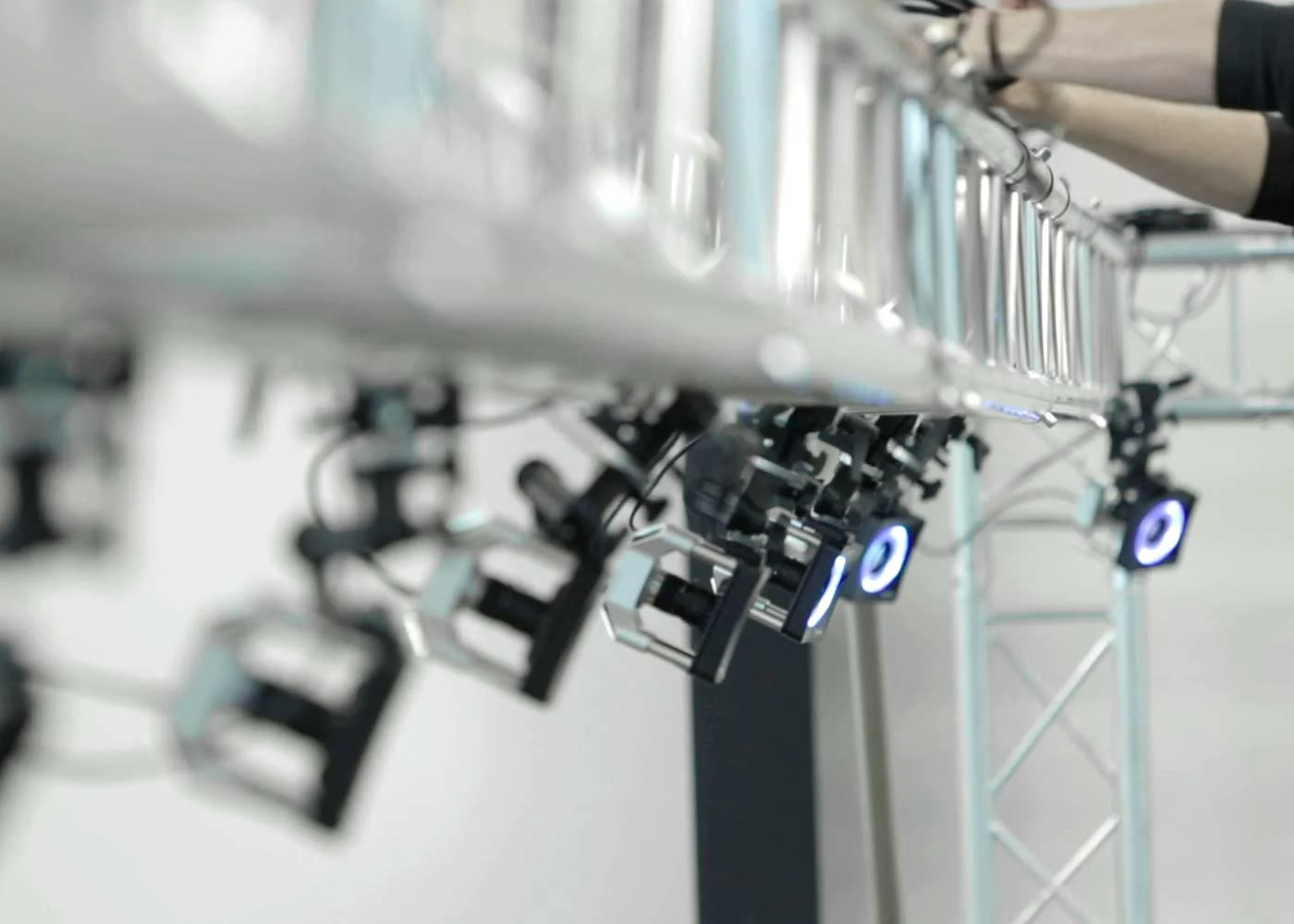

Activision
Call of Duty®: Modern Warfare
Stunning visuals and captivating gameplay with one of the largest OptiTrack systems ever built.

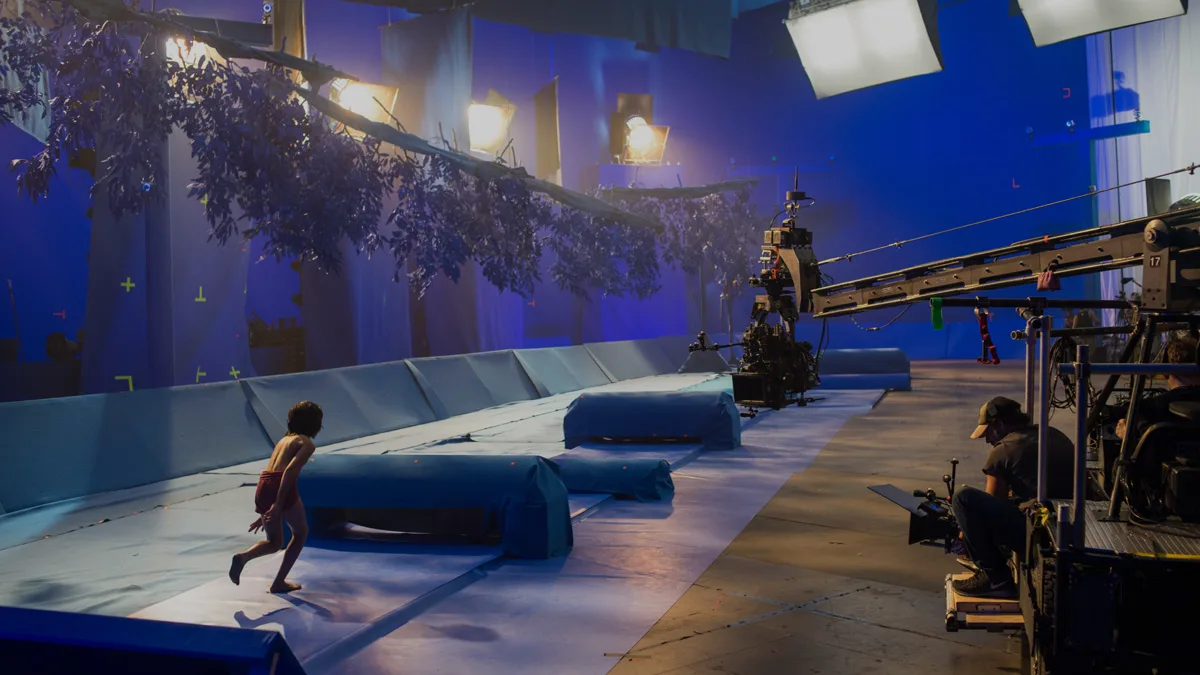

Animatrik
The Jungle Book
Principal camera tracking with over 135 unique mocap camera configurations during the three month shoot.
CalTech
CAST Robotics Lab
Prime 41s deliver a large volumetric tracking area to support drone and ground robot research.

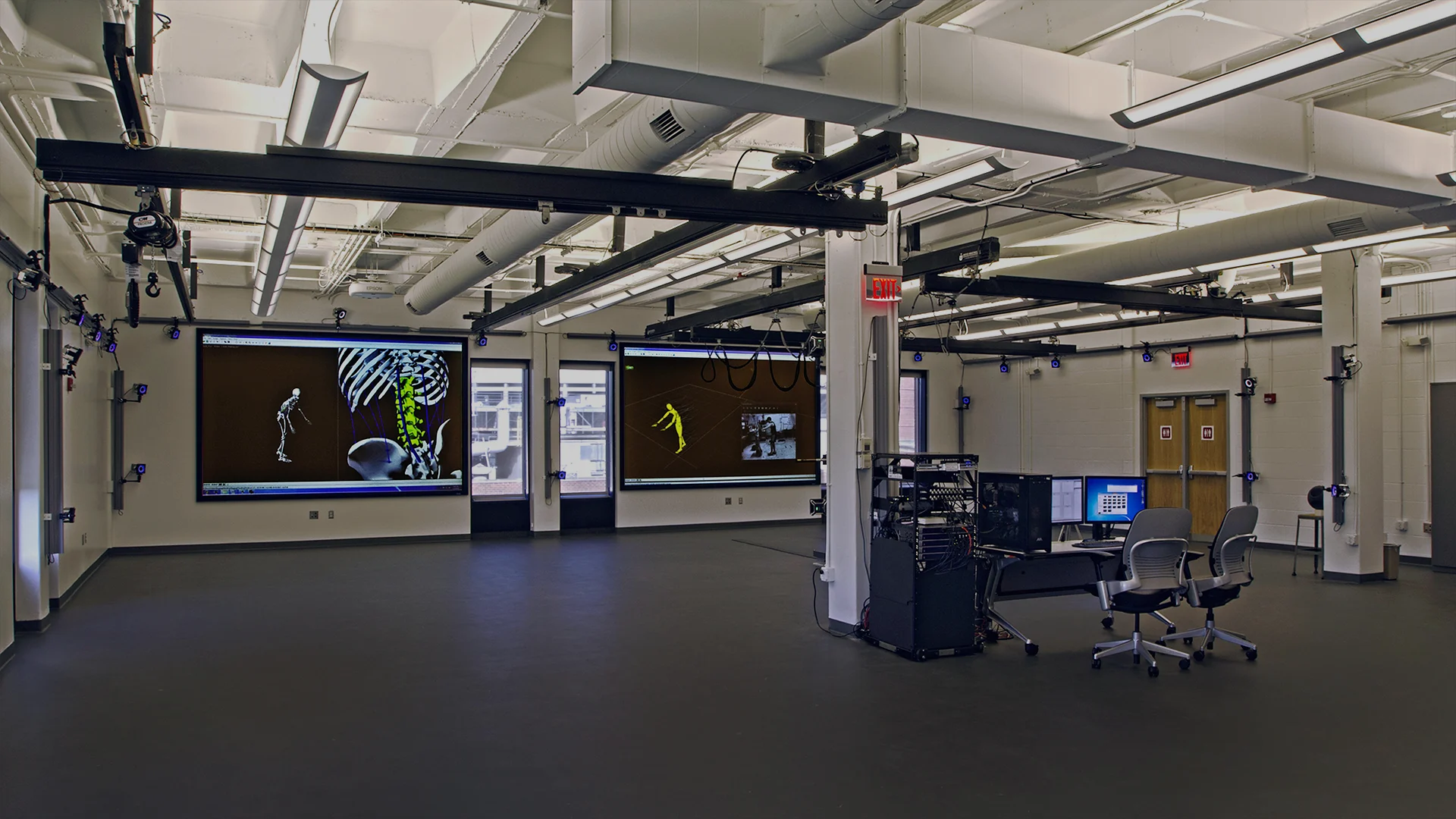

The Ohio State University
Spine Research Center
Utilizes Prime 41s to study difficult-to-diagnose spine disorders for better patient outcomes.
Incredible Range. 100’ passive camera-to-marker range and over 150’ with Signature Pulse Active, all with discrete infrared wavelengths. This provides up to 290,000 cu ft/camera for tracking passive markers and over 1,000,000 cu ft/camera for tracking of active markers.
3
Shot with PrimeX 41 (click to enlarge)
PrimeX equals precision. In-house designed low distortion lenses and true 10-bit grayscale depth reduces quantization noise and improves precision—resulting in perfectly crisp and beautiful images, better centroids and better 3D accuracy.
Megapixels matter, but image quality matters more.

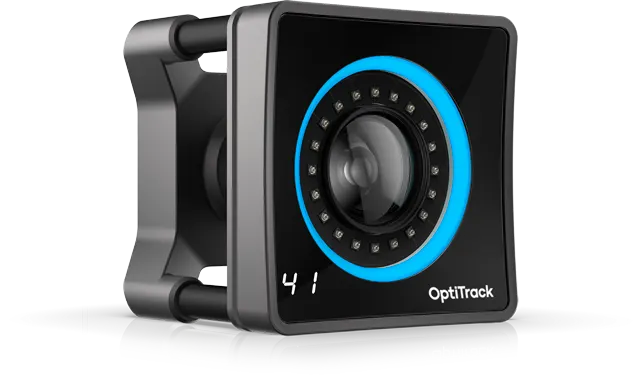

Intuitive & elegant design. In designing the PrimeX series, we considered the complete lifetime of a motion capture camera—from unboxing to setup, capture, and teardown. Each process is elegantly accommodated with a nod to simplicity and usability.
Tracks Passive and Active Markers with positional errors less than +/-0.10mm and rotational errors less than 0.5 degrees. For some tracking applications, customers find benefit in using a combination of active and passive markers.
Mix and match cameras. Any camera in the Prime and PrimeX family can be used together to create the optimal configuration for any use case. That is 11 different cameras that can be chosen to deliver the highest 3D accuracy in any environment.

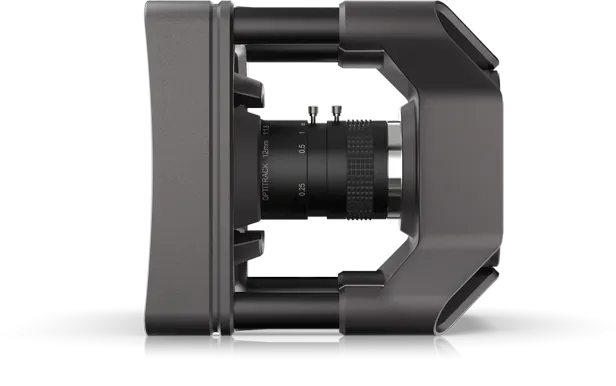

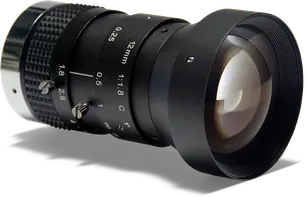

“Fast glass” 12mm lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The PrimeX 41’s standard 12mm lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data.
Powerful on-board image processing. All OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.

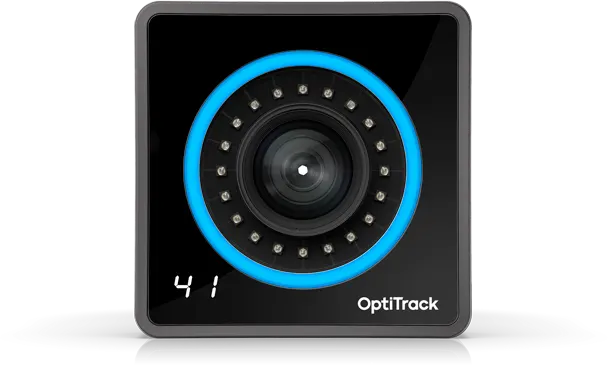

On-camera status indicator. Your OptiTrack system will let you know what it’s up to with the user definable color LED indicator surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Full resolution grayscale reference video. All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
Outdoor capture out-of-the-box. Primex 41 extends its incredible range to marker, for outdoor capture as well. For passive markers, the outdoor (bright sunlight, midday) range is about 50’ (16m). For Signature Pulse Active technology the range is > 70’ (21m).

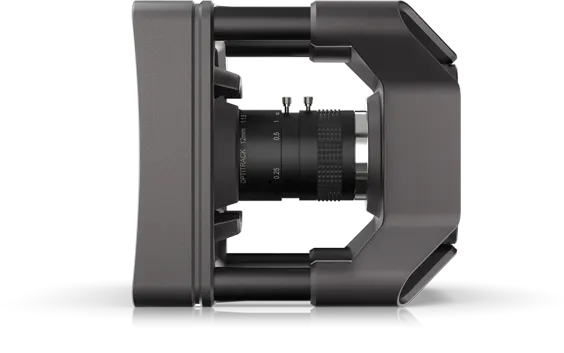

Easy set-up. Aim assist and easily accessed lens controls make the PrimeX 41 fast and easy to set up.

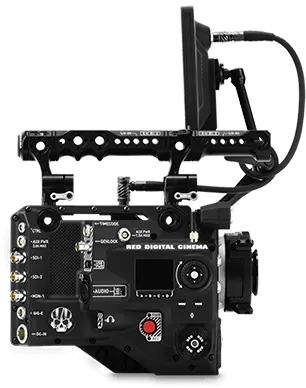

External sync in/out, Genlock, and Time Code. Synchronize any Prime and Primex cameras to any signal or source with the with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
eSync 2
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert system configuration for any space. OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Before Continuous Calibration
After Continuous Calibration
It's more than just cameras. Primex cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The Primex cameras and enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
Motive
2D Object Data
Reconstructed 3D Points
Skeletons
Rigid Bodies
OEM & computer vision integration. Incorporate Primex 41 cameras into OEM tracking or computer vision applications via the free , a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
SDK
Footnotes
Footnotes
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2.
Frame rate | Resolution | FOV (standard 12.5mm lens) |
180 fps | 2048×2048 | 51°×51° |
240 fps | 2048×1440 | 51°×37° |
500 fps | 2048×720 | 51°×18° |
1000 fps | 2048×352 | 51°×9° |
3. Signature Pulse Active markers provide their own unique ID, resulting in 100% error free labels. When introduced into the tracking area, the LED markers are acquired in < 0.1 seconds. Unique marker placements based on spatial separation, normally required for passive marker tracking, are not required for distinguishing multiple rigid bodies.
PrimeX 41
$6,499PrimeX 41

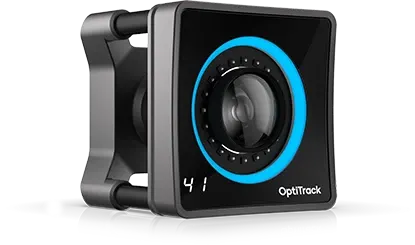

PrimeX 41W
$6,599PrimeX 41W
Image Sensor
Resolution
2048 × 2048
Resolution
2048 × 2048
Native Frame Rate
180 Hz
Native Frame Rate
180 Hz
Latency
5.5 ms
Latency
5.5 ms
Tracking Performance & Range
Global Shutter
Default Speed
0.25 ms
Default Speed
0.25 ms
Minimum Speed
0.01 ms
Minimum Speed
0.01 ms
Maximum Speed
4.0 ms at 250 fps
Maximum Speed
4.0 ms at 250 fps
Image Processing Types
Object
Object
Segment
Segment
Raw Grayscale
Raw Grayscale
MJPEG Grayscale
MJPEG Grayscale
LED Ring
20 LEDs
Ultra High Power
20 LEDs
Ultra High Power
850 nm infrared
850 nm infrared
Connections
Filter & Lens
Adjustable focus
Adjustable focus
Adjustable F-stop
Adjustable F-stop
Stock Lens
51° × 51° FOV (12mm)
Stock Lens
65° × 65° FOV (8.9mm)

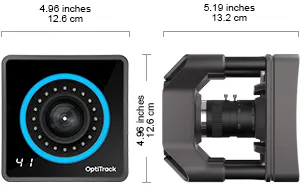

Size & Weight
Width
4.96 inches (12.6 cm)
Height
4.96 in (12.6 cm)
Height
4.96 in (12.6 cm)
Depth
5.19 inches (13.2 cm)
Weight
3.0 pounds (1.36 kg)
Camera Body
Sculpted from aluminum and polycarbonate
Sculpted from aluminum and polycarbonate
1/4"-20 tripod thread (×2)
1/4"-20 tripod thread (×2)
2 digit numeric LEDs status indicators
2 digit numeric LEDs status indicators
Full-color LED health and activity indicator
Full-color LED health and activity indicator
Compatible Software
Motive
Camera SDK
NatNet SDK
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2. LLDP enabled PoE+ switch required for full IR LED power. Max IR power is 4.5W on standard PoE and 15W on PoE+.
