$2,499PrimeX 13W
High speed, wall-to-wall tracking. Optimized for compact volumes such as gait labs and conference rooms, and expansive LBVR installations with overhead grids.
High speed, wall-to-wall tracking. Optimized for compact volumes such as gait labs and conference rooms, and expansive LBVR installations with overhead grids.
Arrow Electronics
Arrow Electronics
SAM Car 3.0
SAM Car 3.0
In-car Prime13Ws track head movement to steer Sam Schmidt’s race car at speeds over 190 mph.

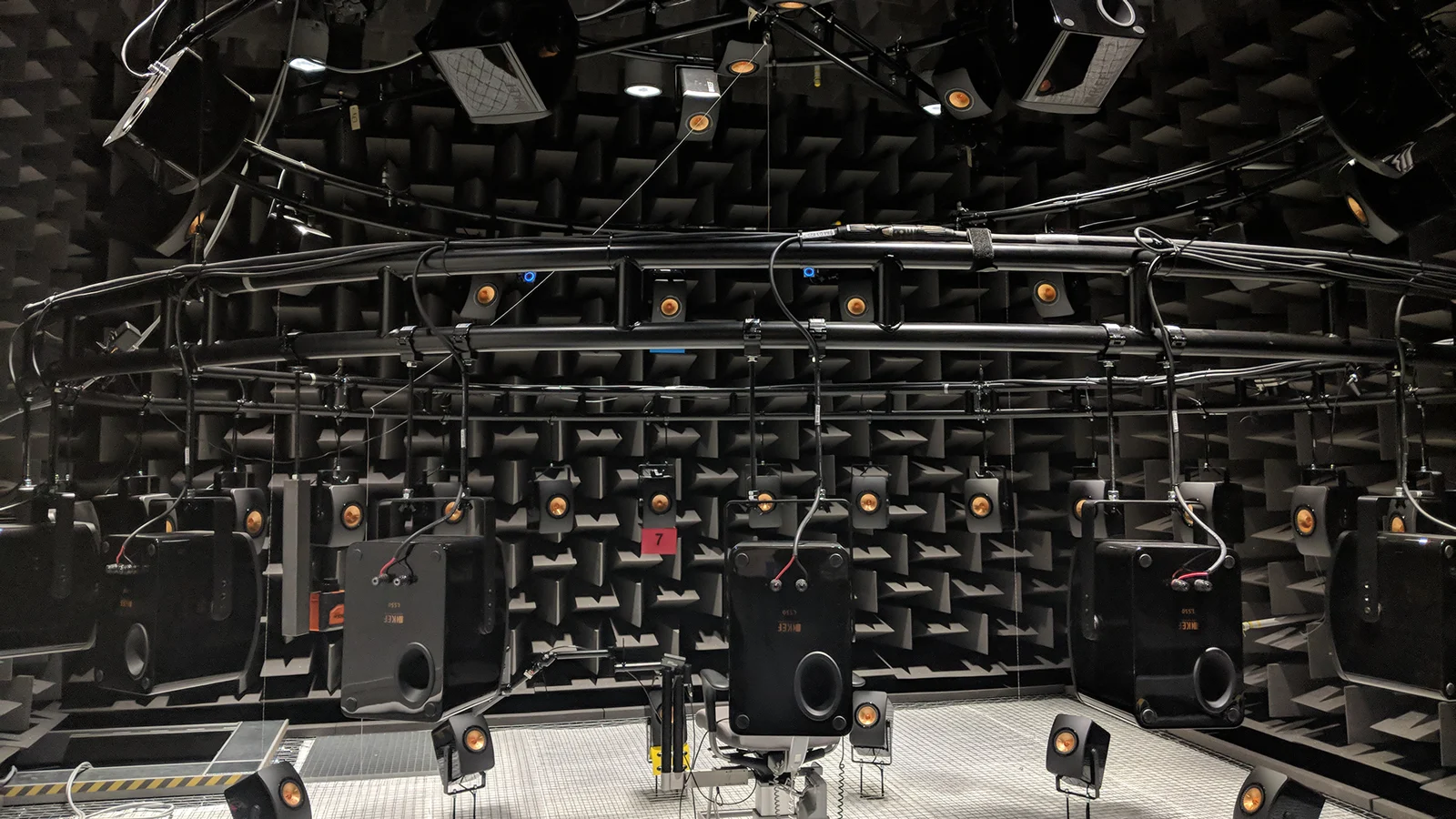

DTU Copenhagen
DTU Copenhagen
Audio Visual Immersion Lab
Audio Visual Immersion Lab
Tracked subjects are immersed in a near perfect replication of the “cocktail party effect” in pursuit of better hearing aids.
Sports VTS
Sports VTS
QB Sim
QB Sim
Prime 13Ws track the VR HMD and football to prepare second string athletes with first string experience.

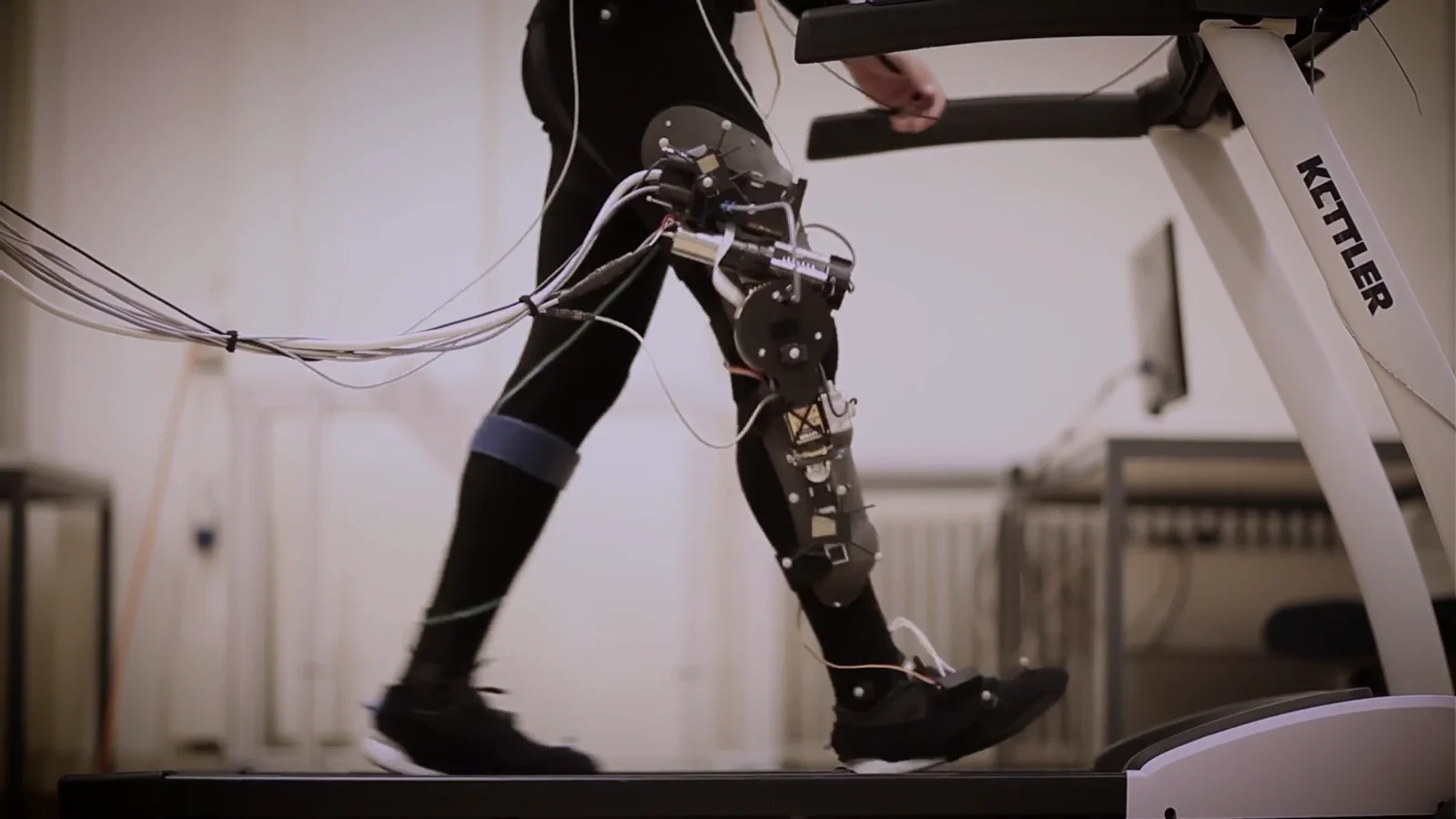

ETH Zurich
ETH Zurich
Elevation Bionics
Elevation Bionics
A time varying mechanical impedance device for knee perturbation during gait analysis.
Small footprint, lightweight. The PrimeX 13W’s 2.7″ square signature, 12 ounce weight and invisible 850nm IR illumination are perfect for applications which require a discreet tracking system.
High frame-rate capture. The Primex 13W’s 240 FPS capture rate and image stopping global shutter can be used when your application requires Prime Series precision for movement speeds above 125mph.
Tracks Passive and Active Markers with positional errors less than +/-0.30mm and rotational errors less than 0.5 degrees. For some tracking applications, customers find benefit in using a combination of active and passive markers.
Mix and match cameras. Any camera in the Prime and PrimeX family can be used together to create the optimal configuration for any use case. That is 11 different cameras that can be chosen to deliver the highest 3D accuracy in any environment.
“Fast glass” M12 lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex 13W’s standard 3.5mm lens is treated with a wide band anti-reflective coating, dramatically increasing light transmission to the imager and yielding larger volumes and more precise 3D data.
Filter Options. Switch between IR and visible spectrum imaging with our software selectable Filter Switcher, or select a band-pass filter to more thoroughly eliminate interference from other light sources.
| / FS
850nm band-pass
800nm
700nm
Powerful on-board image processing. All OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.
On-camera status indicator. Your OptiTrack system will let you know what it’s up to with the user definable color LED indicator surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Full resolution grayscale reference video. All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
External sync in/out, Genlock, and Time Code. Synchronize any Prime and Primex cameras to any signal or source with the with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
eSync 2
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert system configuration for any space. OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Before Continuous Calibration
After Continuous Calibration
It’s more than just cameras. In addition to the essentials to which you’ve grown accustomed, you’ll also discover several new software features that will make you wonder how you ever got along without them. Enjoy innovations like our Continuous Calibration, where a wand wave is required on first installation only, then calibrates automatically just by using the system. No longer does the calibration degrade over time, temperature change, or after cameras are bumped
2D Object Data
Reconstructed 3D Points
Skeletons
Rigid Bodies
OEM & computer vision integration. Incorporate Primex 13W cameras into OEM tracking or computer vision applications via the free , a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
SDK
Footnotes
Footnotes
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2.
Frame rate | Resolution | FOV (3.5mm lens) |
240 fps | 1280×1024 | 82°×70° |
360 fps | 1040×832 | 71°×59° |
500 fps | 880×704 | 62°×52° |
1000 fps | 624×496 | 46°×38° |
PrimeX 13W
$2,499PrimeX 13W
Image Sensor
Resolution
1280 × 1024
Native Frame Rate
240 Hz
Latency
4.2 ms
Tracking Performance & Range
Global Shutter
Default Speed
0.25 ms
Minimum Speed
0.01 ms
Maximum Speed
3.9 ms at 240 fps
Image Processing Types
Object
Raw Grayscale
MJPEG Grayscale
LED Ring
10 LEDs
Wide Ultra High Power
Wide Ultra High Power
850 nm IR
Connections
GigE data port
PoE power
Ethernet camera sync
Filter & Lens
Adjustable focus
Filter Switcher
Included
Stock Lens
82° × 70° FOV (3.5mm)
Size & Weight
Width
2.7 inches (6.86 cm)
Height
2.7 inches (6.86 cm)
Depth
2.1 inches (5.46 cm)
Weight
0.7 pounds (0.32 kg)
Camera Body
Aluminum and Polycarbonate
1/4"-20 Standard Tripod Mount (×2)
2 digit numeric LEDs status indicators
Full-color LED health and activity indicator
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
PrimeX 13W
PrimeX 13W
$2,499
Part number: PX13W
Accessories
Prime 13W Focus ToolPart number: ACC0034$25For focusing the lens on Prime 13W cameras.
