PrimeX 13

PrimeX 13

$2,499

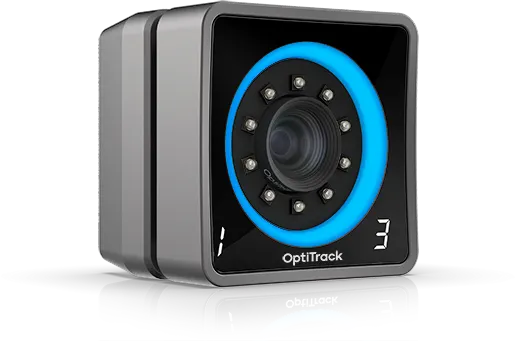

PrimeX 13 camera perspective view

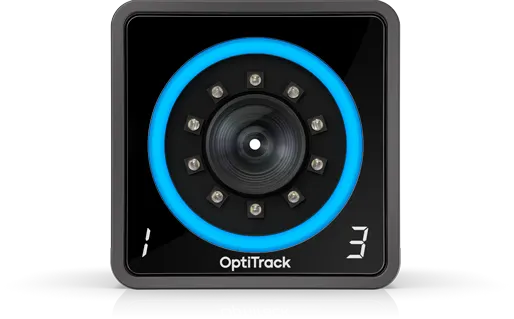

PrimeX 13 camera front view

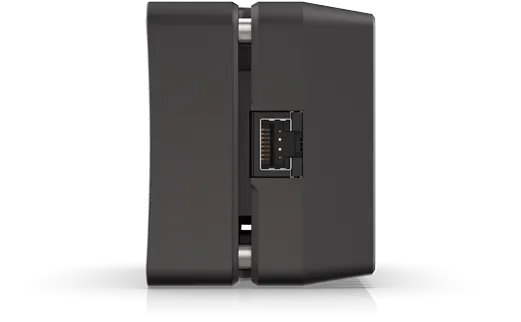

PrimeX 13 camera side view

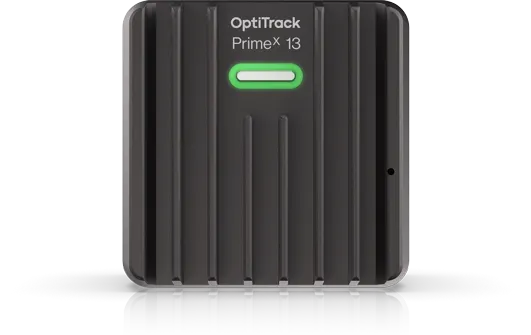

PrimeX 13 camera back view
High speed, precise tracking for medium-sized areas. The next generation of the most widely used camera in motion tracking history.
1.3 MP
resolution
+/- 0.20 mm
3D accuracy
1
240 FPS
native frame rate
1000 FPS
max frame rate
2
PrimeX 13 - Carousel - Audi - Media
Interactive Lab

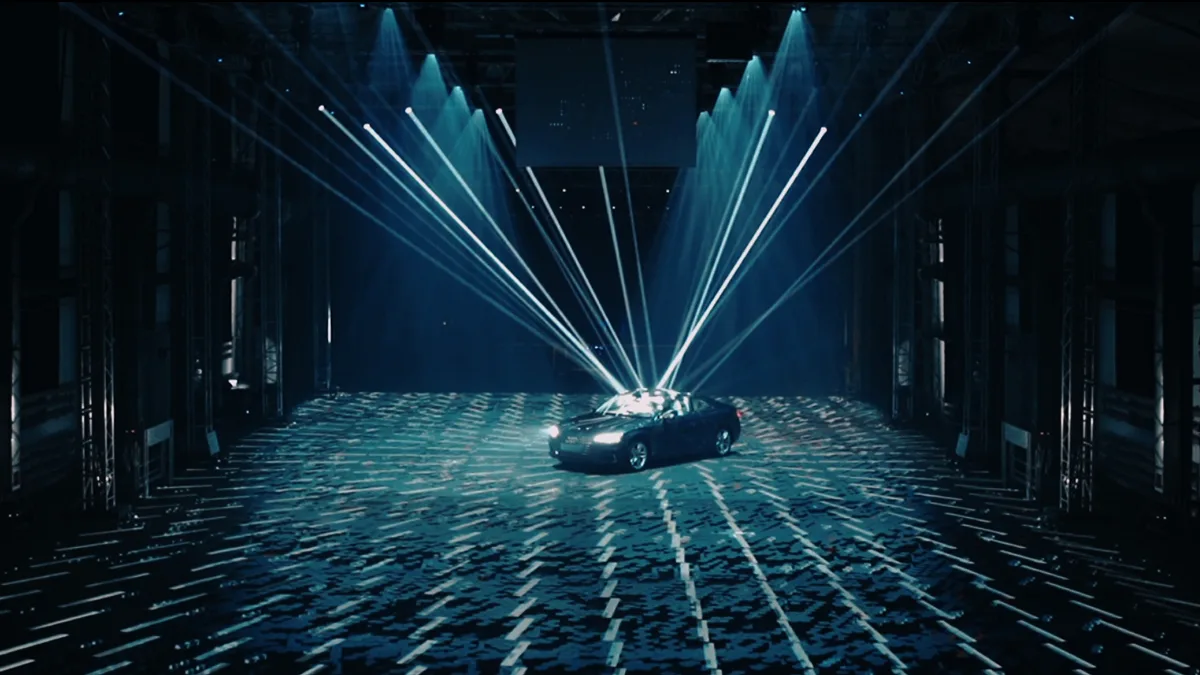

Audi A5 Launch
The world’s first automobile presentation employing real-time motion tracking technology.
PrimeX 13 - Carousel - Sheffield - Media

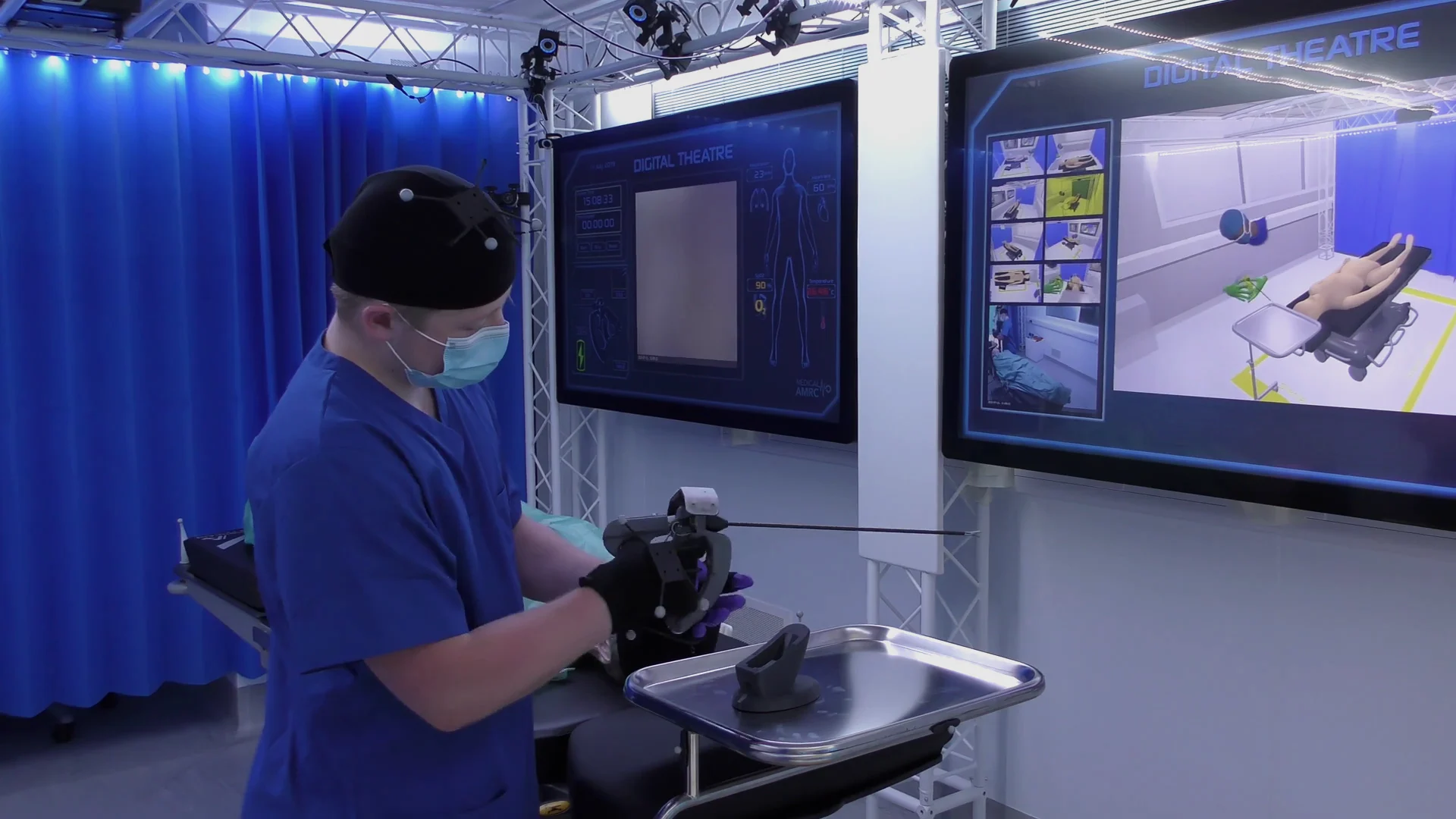

University of Sheffield
Digital Operating Theatre
Tracking tools, patients, surgeons and VR headsets to overcome physical restraints of teaching med students.
PrimeX 13 - Carousel - Arrow - Media
Arrow Electronics
SAM Car 3.0
In-car Prime13Ws track head movement to steer Sam Schmidt’s race car at speeds over 190 mph.
PrimeX 13 - Carousel - Copenhagen - Media

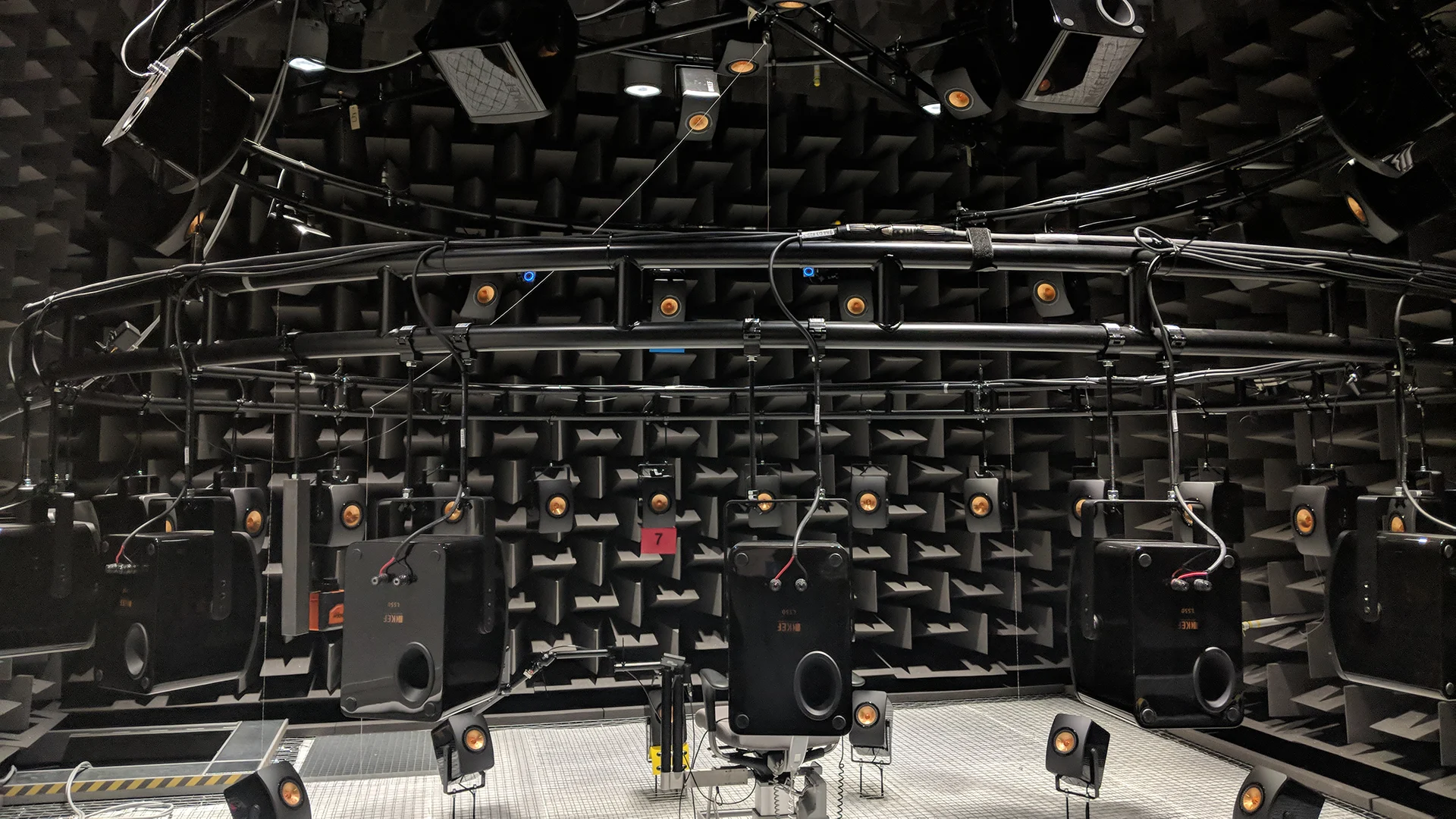

DTU Copenhagen
Audio Visual Immersion Lab
Tracked subjects are immersed in a near perfect replication of the “cocktail party effect” in pursuit of better hearing aids.
PrimeX 13 - Carousel - VTS - Media
Sports VTS
QB Sim
Prime 13Ws track the VR HMD and football to prepare second string athletes with first string experience.
PrimeX 120 - Content - Lightweight - Media

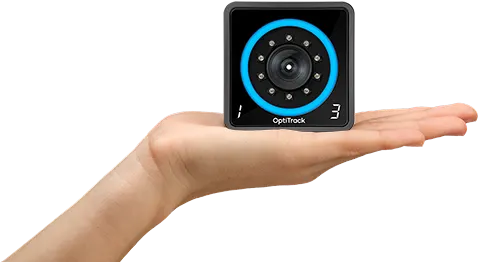

Small footprint, lightweight. The Primex 13’s 2.7″ square signature, 12 ounce weight and invisible 850nm IR illumination are perfect for applications which require a discreet tracking system.
PrimeX 13 - Content - Capture - Media

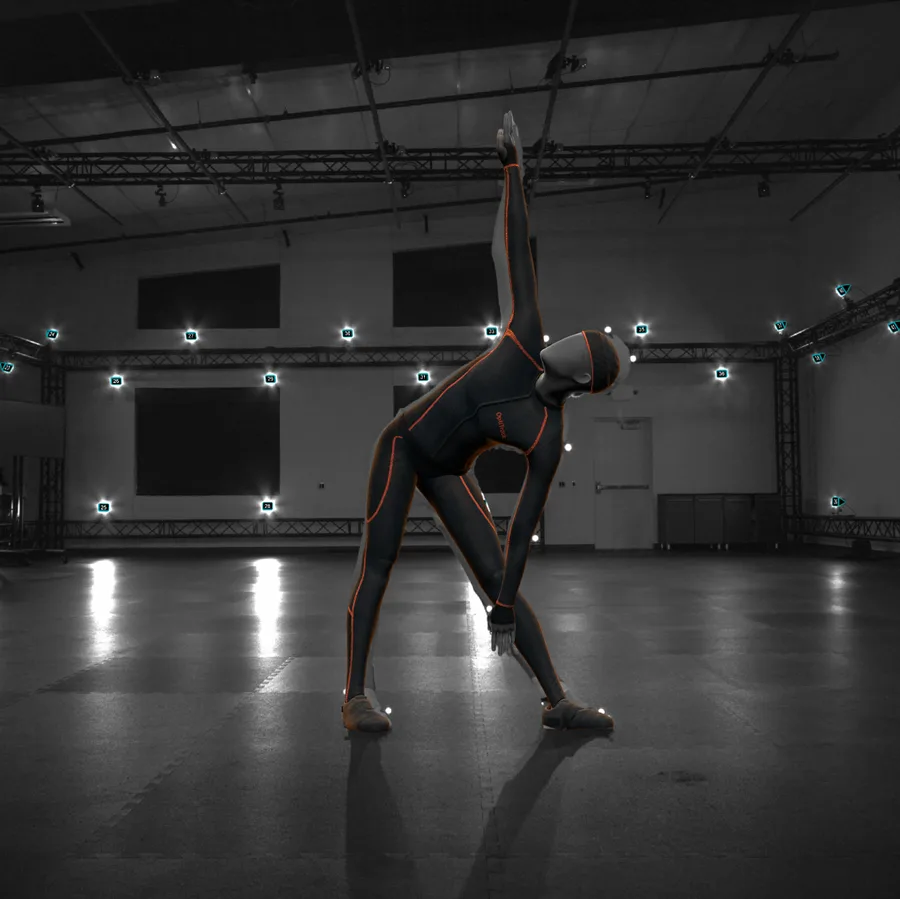

High frame-rate capture. The Primex 13’s 240 FPS capture rate and image stopping global shutter can be used when your application requires Prime Series precision for movement speeds above 125mph.
PrimeX 13 - Content - Markers - Media
Tracks Passive and Active Markers with positional errors less than +/-0.20mm and rotational errors less than 0.5 degrees. For some tracking applications, customers find benefit in using a combination of active and passive markers.

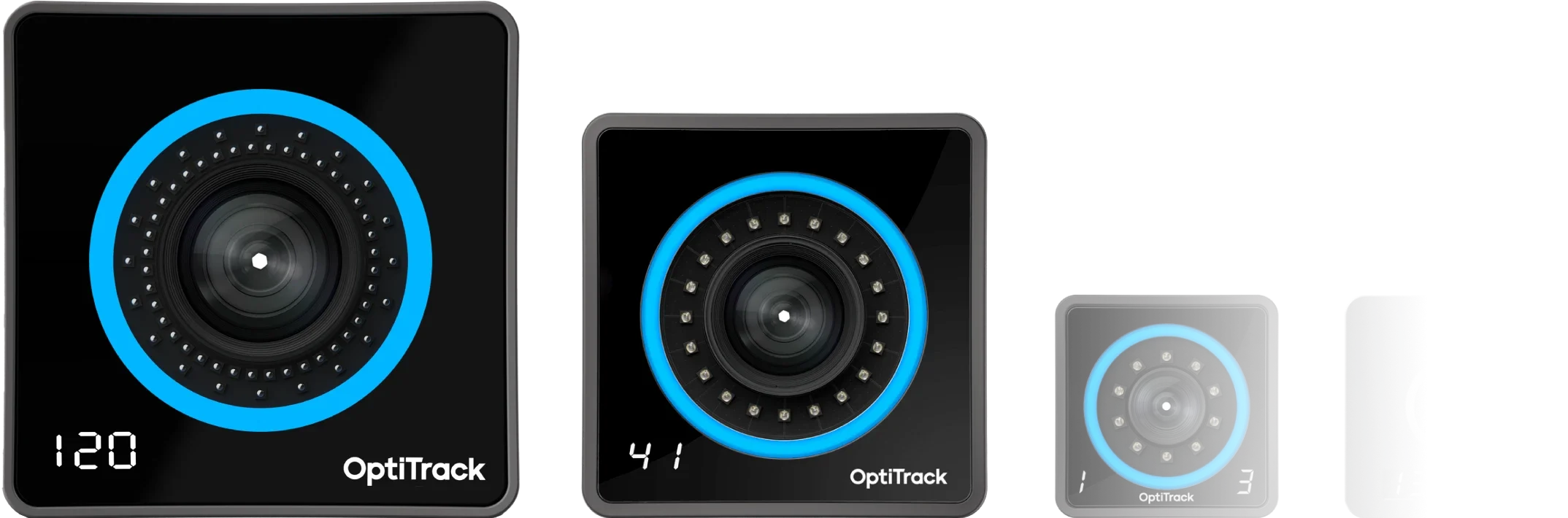

OptiTrack family of cameras front view
Mix and match cameras. Any camera in the Prime and PrimeX family can be used together to create the optimal configuration for any use case. That is 11 different cameras that can be chosen to deliver the highest 3D accuracy in any environment.
PrimeX 13 - Content - Lens - Media

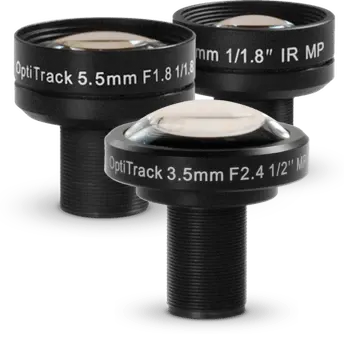

“Fast glass” M12 lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex 13’s F#1.6 lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data.

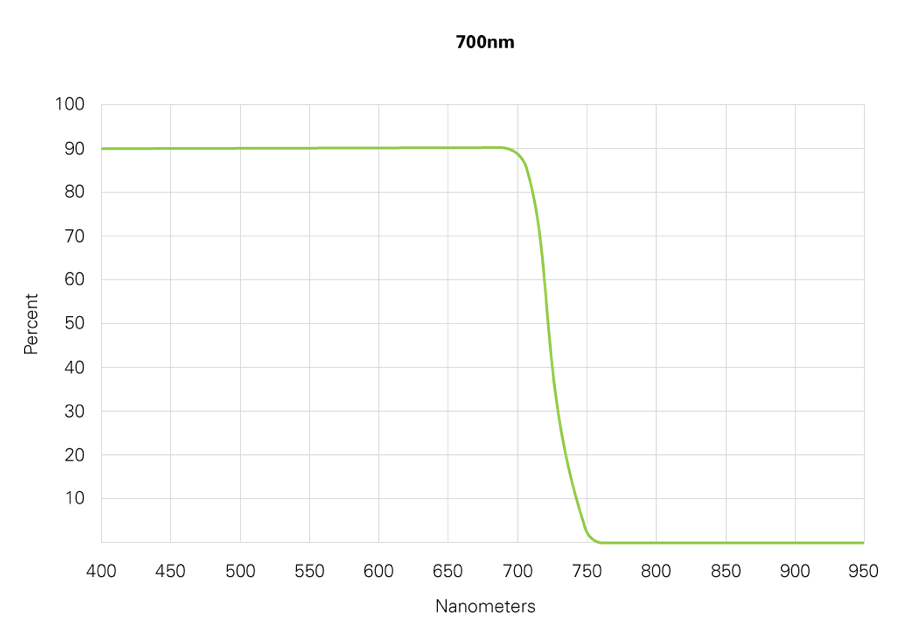

Filter Options. Switch between IR and visible spectrum imaging with our software selectable Filter Switcher, or select a band-pass filter to more thoroughly eliminate interference from other light sources.
850nm band-pass
 |
800nm
/
700nm
 FS
PrimeX 41 - Content - Processing - Media
Powerful on-board image processing. All OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.

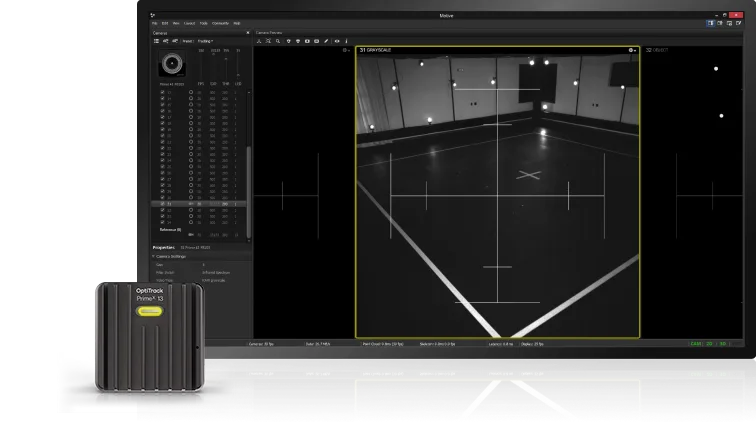

On-camera status indicator. Your OptiTrack system will let you know what it’s up to with the user definable color LED indicator surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Yellow
Press the button for a demo.

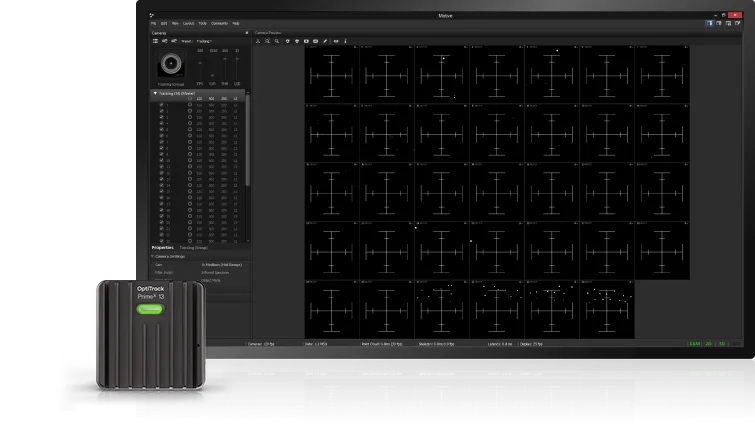

Green
Press the button for a demo.
Easy set-up. Aim assist and easily accessed lens controls make the Primex 13 fast and easy to set up.
PrimeX 22 - Content - Resolution - Media
Full resolution grayscale reference video. All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
Global - Sync - Media
External sync in/out, Genlock, and Time Code. Synchronize any Prime and Primex cameras to any signal or source with the
eSync 2
 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
PrimeX 120 - Content - Configuration - Media
Expert system configuration for any space. OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Global - Calibration Off - Media
Before Continuous Calibration
Global - Calibration On - Media
After Continuous Calibration
It’s more than just cameras. In addition to the essentials to which you’ve grown accustomed, you’ll also discover several new software features that will make you wonder how you ever got along without them. Enjoy innovations like our Continuous Calibration, where a wand wave is required on first installation only, then calibrates automatically just by using the system. No longer does the calibration degrade over time, temperature change, or after cameras are bumped
PrimeX 41 - Content - Features - Object Data - Media
2D Object Data
PrimeX 41 - Content - Features - 3D Points - Media
Reconstructed 3D Points
PrimeX 41 - Content - Features - Skeletons - Media
Skeletons
PrimeX 41 - Content - Features - Rigid Bodies - Media
Rigid Bodies
OEM & computer vision integration. Incorporate Primex 13 cameras into OEM tracking or computer vision applications via the free
SDK
, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
PrimeX 13 camera perspective view

PrimeX 13

From $2,499

Compare Cameras

Cameras - Compare - Media
Footnotes
1. 3D accuracy referenced is for Primex 13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2.
Frame rate
Resolution
FOV (5.5mm lens)
240 fps
1280×1024
56°×45°
360 fps
1040×832
49°×40°
500 fps
880×704
42°×34°
1000 fps
624×496
30°×24°
Home
Cameras
PrimeX 13

PrimeX 13

$2,499
PrimeX 13 camera perspective view

PrimeX 13W

$2,499

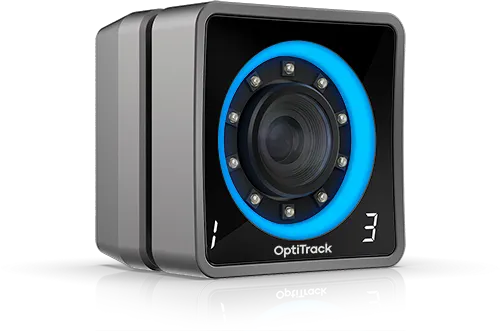

Primex 13W - Perspective - Media
Image Sensor
Resolution
1280 × 1024
Resolution
1280 × 1024
Native Frame Rate
240 Hz
Native Frame Rate
240 Hz
Latency
4.2 ms
Latency
4.2 ms
Tracking Performance & Range
3D Accuracy
1
+/- 0.20 mm
3D Accuracy
1
+/- 0.30 mm
Passive Markers
16 m (55')
Passive Markers
9 m (30')
Active Markers
25 m (85')
Active Markers
15 m (50')
Global Shutter
Default Speed
0.25 ms
Default Speed
0.25 ms
Minimum Speed
0.01 ms
Minimum Speed
0.01 ms
Maximum Speed
3.9 ms at 240 fps
Maximum Speed
3.9 ms at 240 fps
Image Processing Types
Object
Object
Raw Grayscale
Raw Grayscale
MJPEG Grayscale
MJPEG Grayscale
LED Ring
10 LEDs
Ultra High Power
10 LEDs
Wide Ultra High Power
850 nm IR
850 nm IR
Connections
GigE data port
GigE data port
PoE power
PoE power
Ethernet camera sync
Ethernet camera sync
Filter & Lens
Adjustable focus
Adjustable focus
Filter Switcher
Included
Filter Switcher
Included
Stock Lens
56° × 46° FOV (5.5mm)
Stock Lens
82° × 70° FOV (3.5mm)
Optional Lens
43° × 35° FOV (8.0mm)
Size & Weight
PrimeX 13 - Specs - Dimensions - Media
Width
2.7 inches (6.86 cm)
Width
2.7 inches (6.86 cm)
Height
2.7 inches (6.86 cm)
Height
2.7 inches (6.86 cm)
Depth
2.1 inches (5.46 cm)
Depth
2.1 inches (5.46 cm)
Weight
0.7 pounds (0.32 kg)
Weight
0.7 pounds (0.32 kg)
Camera Body
Aluminum and Polycarbonate
Aluminum and Polycarbonate
1/4"-20 Standard Tripod Mount (×2)
1/4"-20 Standard Tripod Mount (×2)
2 digit numeric LEDs status indicators
2 digit numeric LEDs status indicators
Full-color LED health and activity indicator
Full-color LED health and activity indicator
Compatible Software
Software - Cards - Motive - Media
Motive
Software - Cards - Camera - Media
Camera SDK
Software - Cards - NatNet - Media
NatNet SDK
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
Home
Cameras
PrimeX 13

PrimeX 13

$2,499
PrimeX 13 camera perspective view
Part number: PX13
The PrimeX 13 comes equipped with Ethernet connectivity, on-board processing, and a low distortion, "fast glass" lens.
Filter
Lens

PrimeX 13W

$2,499
Primex 13W - Perspective - Media
Part number: PX13W
The PrimeX 13W comes equipped with Ethernet connectivity, on-board processing, and a low distortion, "fast glass" lens.
Filter

Accessories


  • Accessories - Lens Accessories - Prime 13 Focus Tool - Media

    Prime 13 Focus Tool

    Part number: ACC0033
    $25
    For focusing the lens on Prime 13 cameras.

  • Accessories - Lens Accessories - Prime 13W Focus Tool - Media

    Prime 13W Focus Tool

    Part number: ACC0034
    $25
    For focusing the lens on Prime 13W cameras.

Sales Inquiries

For sales inquiries and product information, please complete the below form and an OptiTrack Sales Representative will get back to you.

By submitting this form you acknowledge that you have read, understood and agree to our Terms and Conditions and Privacy Policy.

Build your own motion capture system.
Visit our
System Configurator
 to create your own system based on your needs.

Which camera is right for you?

Cameras - Compare - Media
Home
Cameras
PrimeX 13

PrimeX 13

$2,499
Prime Series Quick Start Guide Thumbnail
Prime Series Quick Start Guide
PrimeX 13 Technical Drawing
PrimeX 13 Technical Drawing
