$10,999PrimeX 120

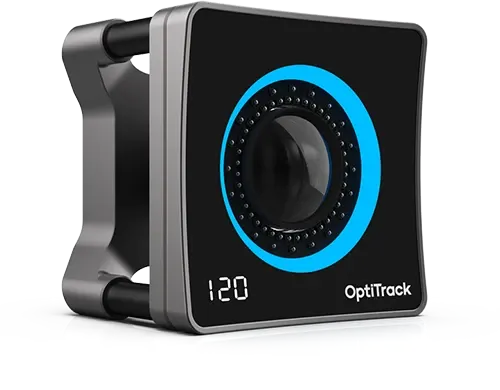

Maximum Accuracy. Longest Range. Highest Resolution. When your application requires our class-leading 3D motion measurement precision in a very large volume nothing compares with the accuracy and durability of the Primex 120.
*Bare Active marker tracking captured at night

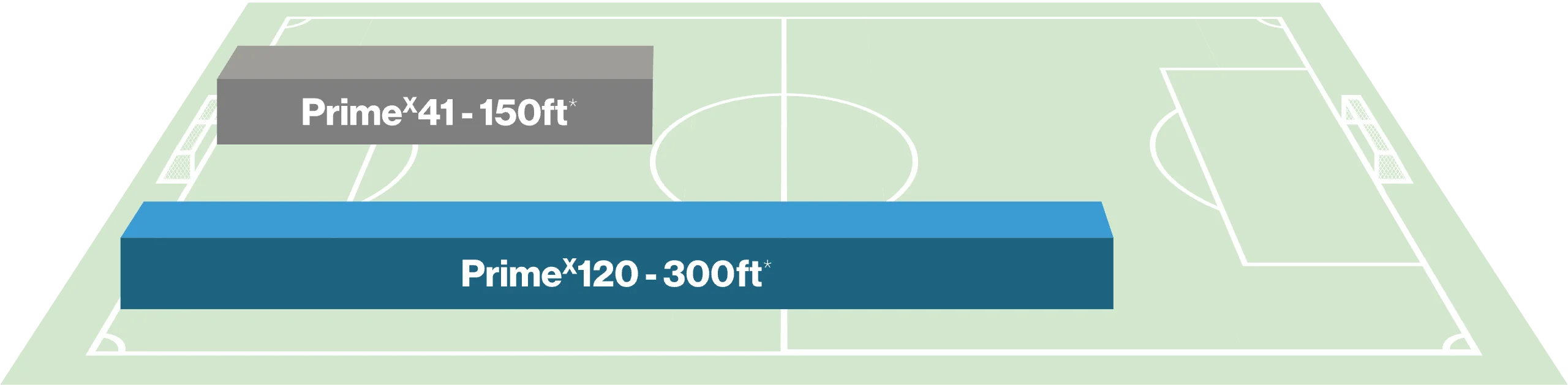

Long Range Performance. The Primex 120 and Primex 120W cameras offer OptiTrack's longest camera-to-marker range for Passive and Active markers. OptiTrack accuracy with more range enables huge tracking volumes for a wider variety of training and simulation scenarios, extreme ground or aerial robotic facilities, larger cinematic virtual production studios and more.
Bare Active marker tracking captured at night
Bare Active marker tracking captured at night
Bare Active marker tracking captured at night
Our highest-resolution cameras enable users to track smaller markers that are both closer to each other, and farther away from the cameras.
Primex equals precision. Primex cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.
“Fast glass” lens. We custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex 120’s standard 18mm lens is treated with a wide band anti-reflective coating, which dramatically increases light transmission to the imager, yielding larger volumes and more precise 3D data.
Choose the wider-view option. The standard Primex 120 offers a broad 51° x 39° Field of View (FOV). For wider volumes that demand elite accuracy, the Primex 120W is available with a 65° x 51° 18mm wide-view lens. The additional FOV lets users deploy fewer cameras to capture movement in wider areas.
Tracks Passive and Active Markers with positional errors less than +/-0.10mm and rotational errors less than 0.1 degrees.
Passive markers - or retroreflective markers, including spheres, hemispheres, and even flat reflective discs, are easy for PrimeX cameras to identify and track.
Active markers invisible infrared LEDs send unique pulses for error free marker IDs with low latency data delivery and 10ms acquisition time.
Active markers are the benchmark for low latency Virtual or Mixed Reality tracking, ground truth systems for Augmented Reality, and high subject count robotics applications such as drone swarms.
Mix and match cameras. Systems can pair Primex 120 cameras with any other Primex or Prime Color cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.
On-camera status indicator. Primex cameras can keep users informed with definable color LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Full resolution grayscale reference video. All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
External sync in/out, Genlock, and Time Code. Synchronize any Prime and Primex cameras to any signal or source with the with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
eSync 2
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
Expert system configuration for any space. OptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
Before Continuous Calibration
After Continuous Calibration
It's more than just cameras. Primex cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The Primex cameras and enable users to see and analyze tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
Motive
OEM & computer vision Integration. Incorporate Primex 120 cameras into OEM tracking or computer vision applications via the free , a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
SDK
Footnotes
Footnotes
1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
2.
Frame rate | Resolution | FOV (standard 24mm lens) | FOV (wide 18mm lens) |
300 fps | 4096×3072 | 51°×39° | 65°×51° |
480 fps | 4096×1904 | 51°×25° | 65°×33° |
840 fps | 2048×1072 | 51°×14° | 65°×19° |
1000 fps | 2048×896 | 51°×12° | 65°×16° |
PrimeX 120
$10,999PrimeX 120
PrimeX 120W
$11,499PrimeX 120W
Image Sensor
Resolution
4096 × 3072
Resolution
4096 × 3072
Native Frame Rate
300 Hz
Native Frame Rate
300 Hz
Latency
3.3 ms
Latency
3.3 ms
Tracking Performance & Range
Global Shutter
Default Speed
0.25 ms
Default Speed
0.25 ms
Minimum Speed
0.01 ms
Minimum Speed
0.01 ms
Maximum Speed
3.13 ms at 300 fps
Maximum Speed
3.13 ms at 300 fps
Image Processing Types
Object
Object
Segment
Segment
Raw Grayscale
Raw Grayscale
MJPEG Grayscale
MJPEG Grayscale
LED Ring
60 LEDs
Ultra High Power
Ultra High Power
60 LEDs
Wide Ultra High Power
Wide Ultra High Power
850 nm IR
850 nm IR
Connections
GigE data port
GigE data port
PoE++ power
PoE++ power
Ethernet camera sync
Ethernet camera sync
Filter & Lens
Adjustable focus
Adjustable focus
Adjustable F-stop
Adjustable F-stop
Stock Lens
51° × 39° FOV (24mm)
Stock Lens
65° × 51° FOV (18mm)

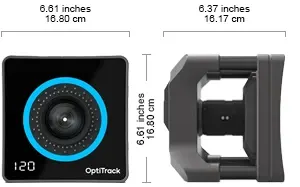

Size & Weight
Width
6.61 inches (16.80 cm)
Width
6.61 inches (16.80 cm)
Height
6.61 inches (16.80 cm)
Height
6.61 inches (16.80 cm)
Depth
6.37 inches (16.17 cm)
Depth
6.37 inches (16.17 cm)
Weight
6.3 pounds (2.88 kg)
Weight
6.3 pounds (2.88 kg)
Camera Body
Aluminum and Polycarbonate
Aluminum and Polycarbonate
3/8"-16 Tripod Mount (×2), 1/4"-20 with adapter
3/8"-16 Tripod Mount (×2), 1/4"-20 with adapter
3 digit numeric LEDs status indicators
3 digit numeric LEDs status indicators
Full-color LED health and activity indicator
Full-color LED health and activity indicator
Compatible Software
Motive
Camera SDK
NatNet SDK
- 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.
