A professional virtual camera system that replicates the organic cinematographer's experience with exceptional fidelity.Real-time visualization, reduced production time, modular hardware, MotionBuilder & Maya plugins, and more.
A professional virtual camera system that replicates the organic cinematographer's experience with exceptional fidelity.
Real-time visualization, reduced production time, modular hardware, MotionBuilder & Maya plugins, and more.
"The value of being able to walk out into a space and explore a virtual world by physically controlling a camera, finding the perfect angles and then shooting multiple takes is truly remarkable. All of this is achieved in a fraction of the time it takes to key frame a single camera take, and the results are more natural."
- Justin Denton, Previs Supervisor,
Halon Entertainment
"I can’t operate a camera with a ... mouse. It’s ridiculous. It’s why CG camera movements look computer-generated."
- James Cameron,
Wired Magazine Interview
Nivzage
Learn more about how Nvizage used the Insight VCS for previz on "Snow White & the Huntsman"
Real-time visualization
Real-time visualization
Real-time virtual camera tracking is ideal for scouting virtual locations, framing shots, and rapidly iterating on complex scenes. Lay down camera moves and capture mocap actors, in the same volume, for previsualization capabilities that are impossible to achieve with traditional keyframing methods. Canned animation can also be integrated into your scene in combination with live camera work.
Reduced production times
Reduced production times
Using motion capture to drive your virtual camera decreases your production workload significantly. In addition to increased realism, mocap offers rapid content creation, real-time results, and greater creative control over your animation, enabling you to create content quickly and affordably.

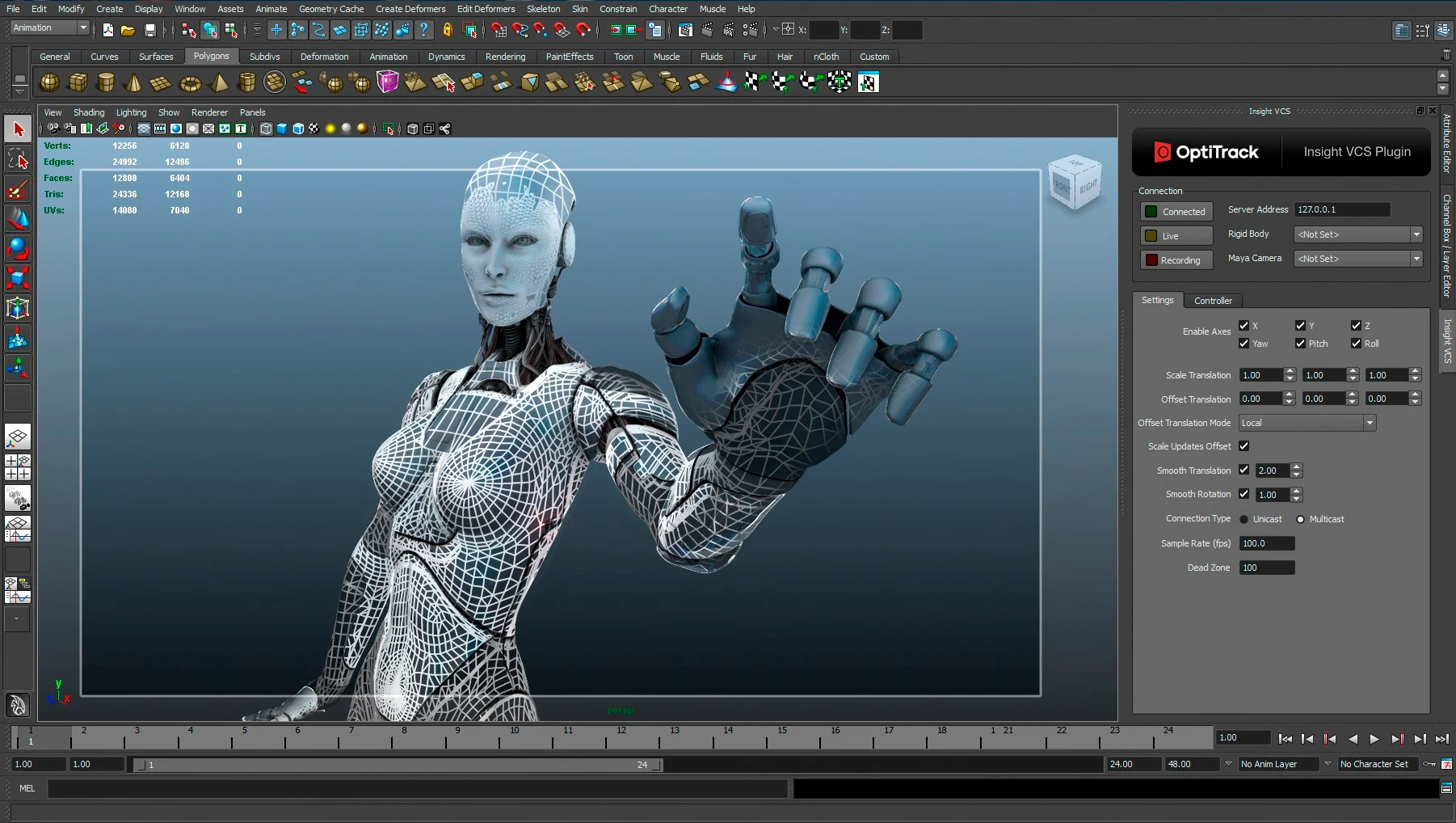

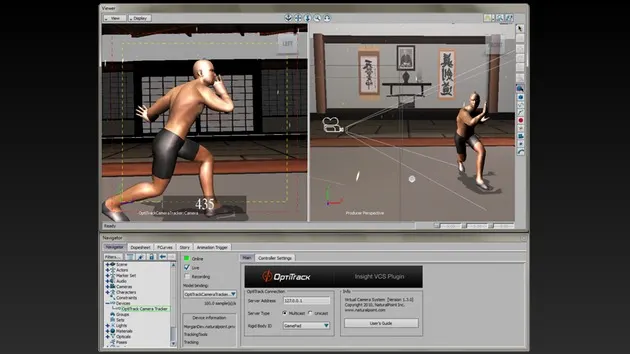

Plugins to MotionBuilder and Maya
Plugins to MotionBuilder and Maya
Comprehensive plugins are available for camera work in MotionBuilder and Maya, enabling control over streaming, scripts, button mapping, scaling, and camera properties. A Universal version of the MotionBuilder plugin is also available for use with motion capture systems from other vendors.
OptiTrack Systems Motive, ARENA, Tracking Tools | 3rd Party Systems | MSRP | ||
Motion Builder Plugin | Standard Universal1 | • • | • | $1,000 $1,999 |
Maya Plugin | Standard | • | $1,000 |

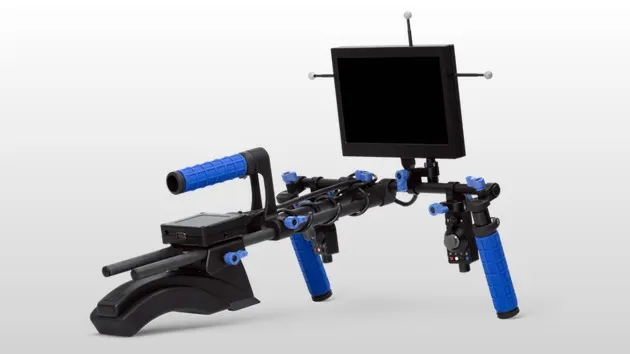

Modular hardware
Modular hardware

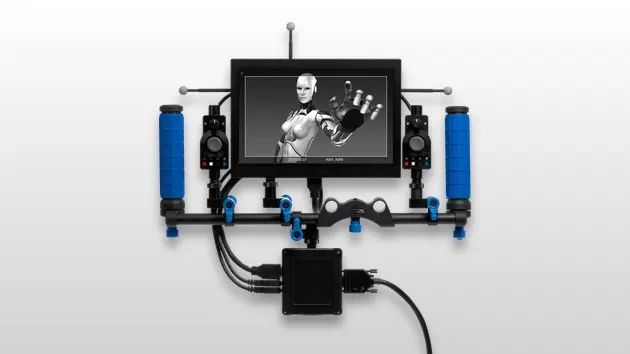

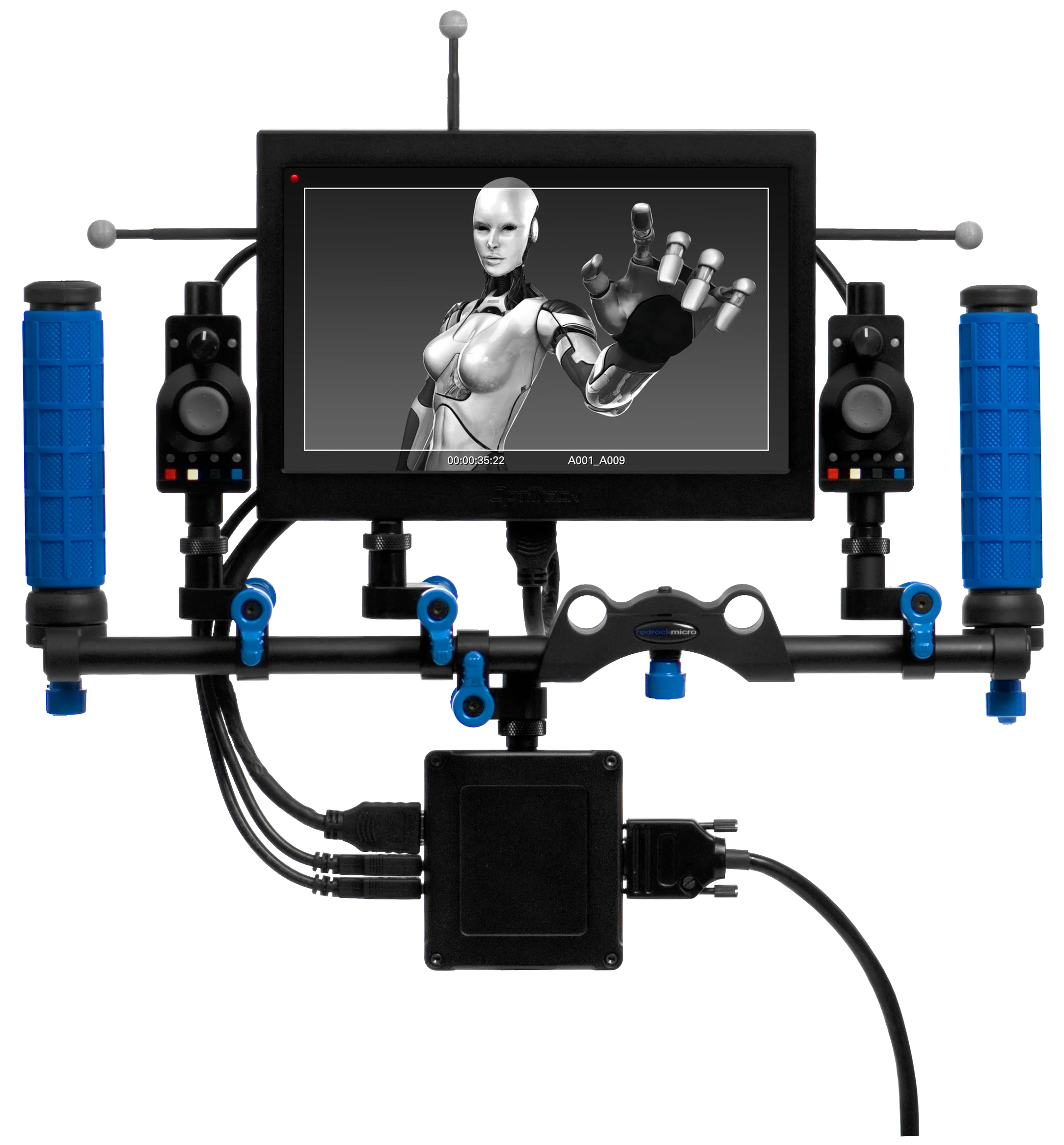

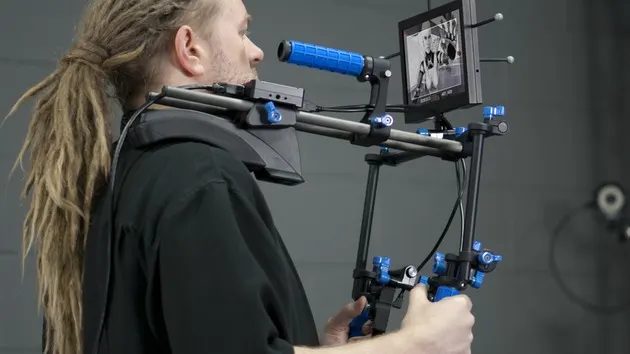

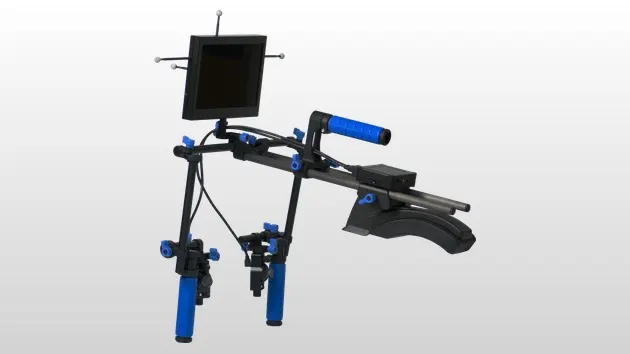

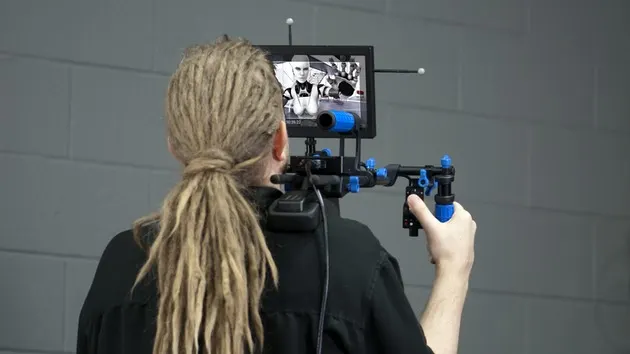

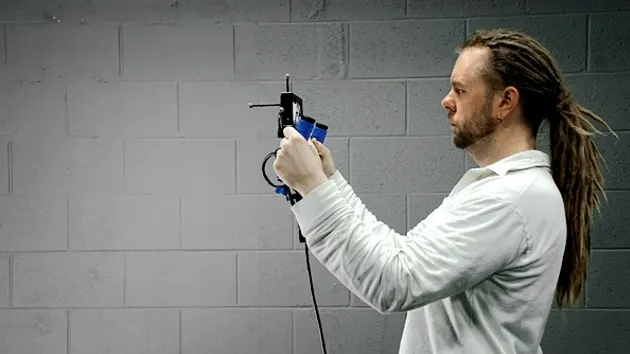

The VCS:Pro supports multiple configurations to fit the demands of your shoot, offering DPs a flexible approach to capturing the feel you require. Utilize the complete shoulder mount for stable and ergonomic control. Or, strip the rig down to bare hand grips, controls, and display for lightweight, run and gun style shooting.
Built with the RedRock microShoulderMount, the VCS:Pro can also be supplemented with a host of RedRock modules to create advanced and highly personalized rigs. Even the VCS controllers are customizable, with plug and play support for custom-designed USB devices.

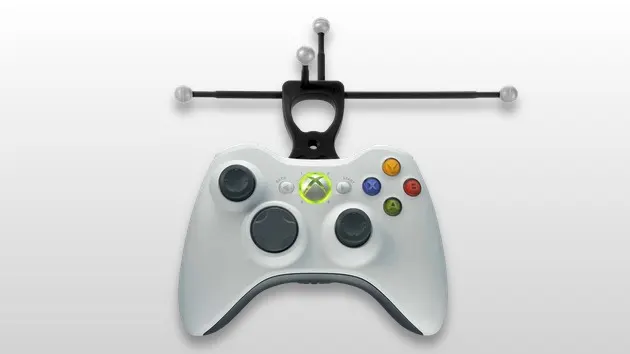

In addition to the modular VCS:Pro, the VCS:Mini is available as an even more affordable and lightweight option.
Interoperability with other
motion capture systems
Interoperability with other
motion capture systems
motion capture systems
To ensure compatibility with a variety of production pipelines, the Insight VCS can be integrated into existing, 3rd party motion capture systems with our Universal MotionBuilder plugin. Support is available for any motion capture system that can stream 6DoF rigid body data to MotionBuilder, for mapping to the virtual camera.
Tech Specs
Tech Specs
8.9-inch LED-backlit widescreen with in-plane switching (IPS), 1920 by 1080P max. resolution, DisplayPort, HDMI, and more.
Insight Virtual Camera System(VCS)
Insight Virtual Camera System(VCS)
Insight VCS:Pro
$5,499Insight VCS:Pro
Insight VCS:Mini
$225Insight VCS:Mini
Display
Display
- 7-inch LED-backlit widescreen with in-plane switching (IPS)
- Input/Output
- HDMI
- 12V (low power draw)
- Supported Resolutions
- 1920 × 1200 (native)
- 720 × 480 up to 1920 × 1080p (scaled)
- Mounting holes
- 1/4-20
- M4
Controller(s)
Controller(s)
- 4 Front facing switches with LED indicators
- 1 Rear switch
- 1 Encoder knob
- Dual LED indicators
- Select switch detent
- 1 X-Y Joystick
- Auto re-center
- Detent select switch
- XBox style thumb stick
- USB 1.1
- Mini-B
- HID compatible
MUX
MUX
- Input/Output
- 36V Power (brick included)
- HDMI Video In (DVI to HDMI cable included)
- USB Female B (Male A to Male B cable included)
- Connecting Cable
DeMUX
DeMUX
- Input/Output
- 4 USB 1.1
- Powered
- HID compatible
- HDMI
- 12V
- Connecting Cable
Shoulder Rig
Shoulder Rig
- microShoulderMount Deluxe Bundle
- microMount
- microHandle
- 2 Grip Rods (8 inches) with clamps
- 2 Grip Rods (4 inches) with clamps
Connecting Cable
Connecting Cable
- 50 feet
- 100 feet
In the Box
In the Box
Insight VCS Part number: INVCS-PRO
- 1 microShoulderMount deluxe bundle
- 1 microMount
- 1 microHandle
- 2 Grip Rods (8 inches) with clamps
- 2 Grip Rods (4 inches) with clamps
- 1 VCS HD monitor
- 2 VCS USB joysticks
- 1 VCS Mux assembly
- 1 VCS Demux assembly
- 1 Connecting cable (50 or 100 feet)
- 1 36V power brick w/ cable
- 1 A to B USB uplink cable (5 meters)
- 1 DVI-HDMI cable (10 feet)
- 2 Mini-USB B up angle USB cable (24 inches)
- 1 DC plug cable (24 inches, 2.1 mm)
- 1 HDMI M / M cable (18 inches)
- 1 VCS markers & posts
- 1 Set of 4 hard reflective markers (7/16 inch)
- 1 40mm mounting post
- 2 60mm mounting post
- 1 80mm mounting post
Insight VCS:Mini Part number: VCS-MNI
- Anodized aluminum mount
- Wireless Xbox 360 game pad (USB)
- Markers and posts
