V120 Trio

V120 Trio

$3,999

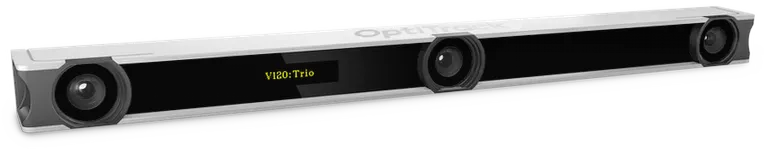

V120 Trio camera perspective view
V120 Trio camera shown in front view
V120 Trio shown in side view

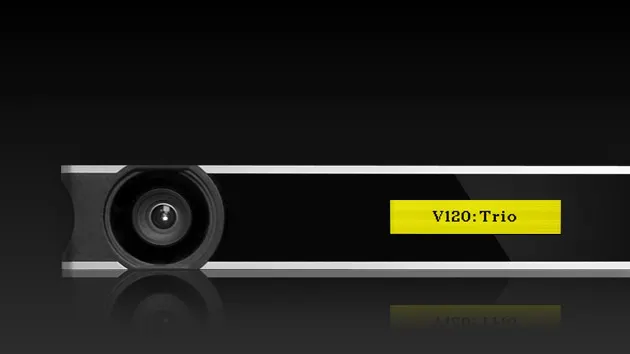

Featuring the display of the V120 Trio camera

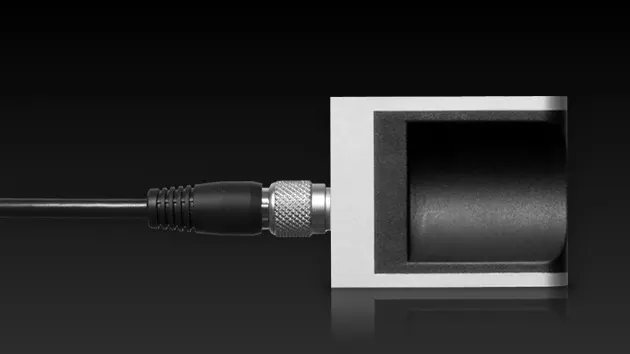

Cable plugged into the V120 Trio camera

640 × 480 (×3)

resolution

120 FPS

frame rate

USB 2.0

Input/Output
6DoF optical tracking with multiple cameras and capture software in a single plug-and-play package
Multiple cameras, ultra portable, plug-n-play, Filter Switcher, bundled software, and more—a self-contained tracking system.
V120 Trio camera perspective view
The V120:Trio tracking system offers the power of multiple-camera, 6DoF object tracking in a single, plug-and-play package. Each tracking bar is self-contained and pre-calibrated prior to shipment—meaning that no user calibration is required—for out of the box motion tracking that is simple to use, but still offers the leading accuracy and flexibility of optical tracking technology.
V120 Trio - Content - Tracking - Media
Plug-and-play multi-camera motion tracking
Enjoy many of the same benefits as large scale, multi-camera tracking—such as enhanced accuracy, larger capture volumes, and tracking of multiple, customizable objects—distilled down to a single hardware unit and simple I/O.
V120 Trio - Content - Capture - Media
Super portable, desktop friendly capture
At less than two feet in total length, the V120:Trio packs comprehensive tracking capabilities into a portable form factor—enabling easy transport and rapid deployment of the entire system.
V120 Duo - Content - Software - Media
Bundled engineering-grade software
Every purchase of Duo or Trio hardware includes a free license of
Motive:Tracker
, OptiTrack's engineering-grade rigid body and marker tracking application. Features include:
6DoF object tracking
Quickly create custom rigid bodies to track position and orientation in all six degrees of freedom. Custom marker arrangements enable you to track a variety of object shapes with passive markers and active LEDs. Additionally, high level tracking filters and constraints can be implemented to further tune when markers and rigid bodies are tracked.
Real-time data streaming
Built-in support for industry standard VRPN and trackd protocols makes integrating real time tracking data with your applications a snap. Stream to or from your application using the included network transport for convenient cross-platform communication. For a wider range of data streaming types, use OptiTrack's
NatNet SDK
.
Data recording, playback, and export
Tracking data can be recorded within Motive:Tracker for playback and post-processing. Export recorded data in both C3D and CSV formats for motion capture and analysis.
V120 Trio - Content - Architecture - Media
Proven camera architecture
The Trio is built on OptiTrack's custom image processing platform, which offers professional motion tracking capabilities at unparalleled pricing.
On-camera image processing
A variety of pre-processed image types are supported on-camera, resulting in decreased bandwidth and CPU load and more efficient motion tracking. Image processing types include:
  • Precision Grayscale
  • Segment
  • MJPEG-compressed grayscale
  • Raw grayscale
Camera control
Access a variety of camera settings with the Motive:Tracker Application and API for greater control over what your cameras capture and report to the PC for processing. Available settings include:
  • Image processing type
  • Frame rate
  • Exposure
  • Threshold
  • Illumination
  • Filter switching
  • And more...
Grayscale video with MPEG compression
When operating any of the Trio's cameras in grayscale, on-camera MJPEG compression is available for reduced USB bandwidth and CPU usage. MJPEG compression consumes 1/10th the bandwidth of uncompressed video while still enabling real-time grayscale video at full frame rate and full resolution.
Precise, efficient motion tracking

The Trio is capable of capturing fast moving objects with its global shutter imager and 120 FPS capture speed. Using advanced image processing to maximize resolution from its three 640 × 480 VGA sensors, the Trio can also track markers down to sub-millimeter movements with repeatable accuracy.
V120 Trio - Content - Video - Media
Enhanced scene video with FS technology
Each camera inside a Trio can operate in grayscale mode for high-speed, full-frame reference video. Additionally, the middle camera is equipped with Filter Switcher technology, for visible-spectrum imaging that offers enhanced image quality and more flexible illumination options.
V120 Trio - Content - Synchronization - Media
External synchronization
External sync in/out is supported with the included I/O-X sync box, for seamless compatibility with shutter glasses and other hardware devices.
V120 Trio - Content - Plugins - Media
Compatible with Insight VCS virtual camera plugins
Create a complete desktop virtual camera system for just over $3k with a V120:Trio, VCS:Mini, and a VCS plugin to MotionBuilder or Maya. The Trio can be fully integrated into an Insight VCS pipeline, out of the box, via the bundled Motive:Tracker software.
V120 Trio - Content - Integration - Media
OEM integration
Incorporate the Trio into your own applications for seamless OEM integration via the Motive:Tracker API, which is included free with every Trio purchase. This API provides software development access to the full tracking and streaming capabilities of the Trio.
Need more? (accuracy, coverage, software options…)
If you like what the V120:Trio offers, but you need the capabilities of a full-scale tracking system, be sure to visit our system bundles page to find out more about multi-camera systems.
Learn more
.
Feature Comparison

V120:Duo/Trio
Full Multi-Camera Systems
Pre-calibrated for Plug and Play motion tracking
OptiTrack’s tracking bars are pre-calibrated at the factory, prior to shipment—meaning that no user calibration is required. Full multi-camera systems built with multiple cameras require camera arrangement, cabling, and calibration by the user prior to tracking.

6DoF tracking with a single device
A single tracking bar device can track rigid bodies in 6DoF out of the box, while OptiTrack motion capture cameras require multiple (3+) calibrated cameras to capture 6DoF object data.

Highly portable
Each tracking bar is a self-contained system, offering engineering-grade 6DoF tracking in a highly portable form factor. While full motion capture systems can provide superior scalability and performance, they cannot be transported or deployed nearly as quickly as a tracking bar.

Includes free motion tracking software
Each tracking bar is bundled with a free license of
Motive:Tracker
, OptiTrack’s engineering-grade rigid body and marker tracking application. Multi-camera systems require the additional purchase of Motive:Tracker,
Motive:Body
, or
Expression
 software for motion capture capabilities.

Expandable camera counts and volume sizes
Our multi-camera systems can be customized with additional cameras, while tracking bars must be used as stand-alone devices. Adding more cameras enables:
360° camera arrays for reduced occlusion and increased tracking accuracy
Larger and more complex capture volumes
More camera redundancy for improved coverage throughout volume
Expandable systems for enhancing tracking capabilities over time

Multiple camera positions
Cameras tracking from multiple locations improves redundancy, range of motion and coverage. Markers blocked from one camera's view can remain visible to cameras at other positions which allows tracking to continue seamlessly.

V120 Trio camera perspective view

V120 Trio

From $3,999

Compare Cameras

Cameras - Compare - Media
Home
Cameras
V120 Trio

V120 Trio

$3,999
V120 Trio camera perspective view
Image Sensor
Resolution
640 × 480 (× 3)
Native Frame Rate
120 Hz
Latency
8.3 ms
Tracking Performance & Range
3D Accuracy
1
+/- 0.50 mm
Passive Markers
6 m (20')
Global Shutter
Default Speed
1 ms
Minimum Speed
0.01 ms
Image Processing Types
MJPEG Grayscale
LED Ring
26 LEDs (× 3)
Wavelength: 850 nm IR
Connections
Data Port USB 2.0
12V @ 3A
internal or external (via IO-X) camera sync
Filter & Lens
Filter Switcher
Optional
Stock Lens
47° × 43° FOV (3.5mm)
Size & Weight
V120 Trio - Specs - Dimensions - Media





Width
23 inches (58.52 cm)
Height
1.6 inches (4.06 cm)
Depth
2 inches (5.08 cm)
Weight
2.8 pounds (1.3 kg)
Camera Body
Aluminum
1/4”-20 tripod thread
128 × 22 OLED status indicator
128 × 22 OLED health and activity indicator
In the Box
In the Box
1 V120:Trio

1 Quick Start guide

1 license of Motive:Tracker

1 12V universal power supply (US/EU-compatible)

1 USB uplink cable (5 meters)

1 Hand rigid body
Part Number: MCP1145

4 M3 Small Short Marker Bases
Part Number: MB09W05HM3

4 M4 Medium Short Marker Bases
Part Number: MB15W05HM4

4 M4 Medium Long Marker Bases
Part Number: MB15W15HM4

4 M3 7.9mm Markers
Part Number: MKR079M3

4 M4 9.5mm Markers
Part Number: MKR095M4

8 M4 12.7mm Markers
Part Number: MKR127M4

10 Ø3/8 Rubber Adhesive Dots
Part Number: MBA10MMR

10 Ø1/2 Rubber Adhesive Dots
Part Number: MBA13MMR
System Requirements
Windows Vista/7/8/10

1GHz processor

1GB of RAM

50MB of available disk space

USB 2.0 Hi-speed port
Home
Cameras
V120 Trio

V120 Trio

$3,999
6DoF optical tracking with multiple cameras and capture software in a single plug-and-play package.
Tracking bar is self-contained and factory calibrated, for out of the box motion tracking, and comes with:
  • 1 V120:Trio
  • 1 Quick Start guide
  • 1 license of Motive:Tracker
  • 1 12V universal power supply (US/EU-compatible)
  • 1 USB uplink cable (5 meters)
  • 1 Hand rigid body Part Number: MCP1145
  • 4 M3 Small Short Marker Bases Part Number: MB09W05HM3
  • 4 M4 Medium Short Marker Bases Part Number: MB15W05HM4
  • 4 M4 Medium Long Marker Bases Part Number: MB15W15HM4
  • 4 M3 7.9mm Markers Part Number: MKR079M3
  • 4 M4 9.5mm Markers Part Number: MKR095M4
  • 8 M4 12.7mm Markers Part Number: MKR127M4
  • 10 Ø3/8 Rubber Adhesive Dots Part Number: MBA10MMR
  • 10 Ø1/2 Rubber Adhesive Dots Part Number: MBA13MMR
Filter
V120 Trio camera perspective view
Part number: V120-TR.FSBP
