Ultra-wide FOV for optical tracking in CAVEs and other compact spaces.The Prime 13W is optimized for low-latency, high precision tracking of almost every inch of very compact setup areas.
Ultra-wide FOV for optical tracking in CAVEs and other compact spaces.
The Prime 13W is optimized for low-latency, high precision tracking of almost every inch of very compact setup areas.

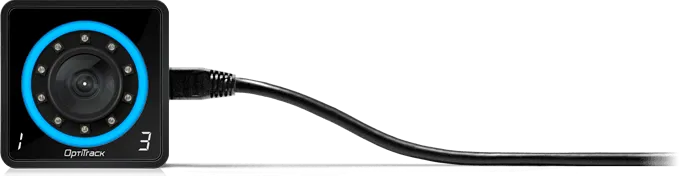

The Prime 13W is an ultra-wide angle camera offering high precision megapixel resolution, 240 FPS capture rate, low latency real time output and the flexibility of a Ethernet/PoE interface.
Ultra-wide angle capture
Ultra-wide angle capture

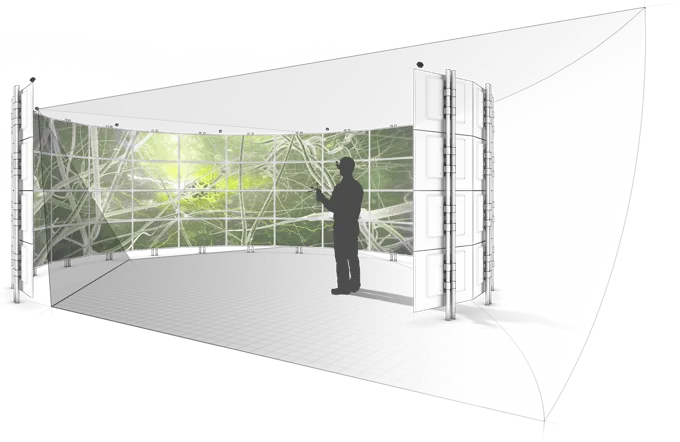

The Prime 13W’s 82° × 70° FOV is specifically tuned for tracking almost every inch of smaller spaces, such as CAVEs, powerwalls, HMD environments, small gait labs, and other compact installations.

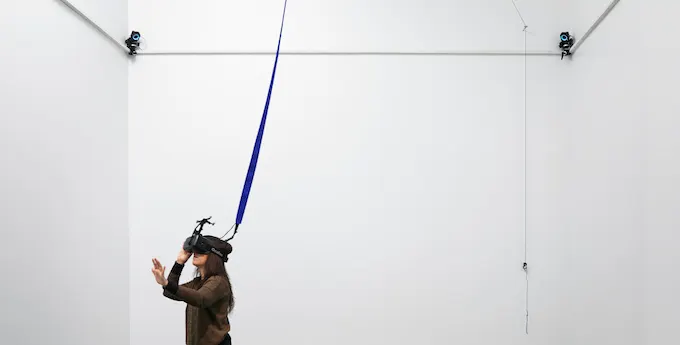

Case Study: New Museum
Case Study: New Museum
Combining wall-to-wall capture with a low-profile tracking system.
Learn more...
Megapixel resolution
At double the resolution of the S250e, the Prime 13W’s 1.3 MP imager provides excellent 3D precision throughout its expansive coverage.
Scalable Ethernet/PoE interface
A Ethernet/PoE interface offers a long-range alternative to our USB-based Flex 13, ideal for home-running cables to a control room that’s removed from your VR environment.
240 FPS tracking
Track fast-moving objects and synchronize with third-party lab tools with the Prime 13W’s 240 FPS capture speed, global shutter and low latency real time output.
Low distortion 3.5mm M12 lens
Low distortion 3.5mm M12 lens
We custom design our own super low distortion, “fast glass” lenses, which include wide band anti-reflective coating for increased light transmission, yielding larger volumes and cleaner data.
Filter Options
Alternate between IR and visible spectrum imaging with our Filter Switcher technology, or select a band-pass filter to eliminate interference from other light sources even more thoroughly.
Discreet form & function
Discreet form & function
The Prime 13W’s diminutive 2.7″ square signature and invisible 850nm IR illumination are perfect for applications that require a nearly invisible tracking system.
Intuitive & elegant design
Intuitive & elegant design
In designing the Prime series, we considered the complete lifetime of a motion capture camera—from unboxing to setup, capture, and teardown. Each process is accommodated with a nod to simplicity and usability.
Aim Assist for single user setup
Aim Assist for single user setup
Bring the camera to view in software and optimize camera settings for aiming with one button press. Aim Assist enables a single operator to configure a system in minutes, without ever touching the software interface.
Press the button for a demo.
Press the button for a demo.
Press the button for a demo.
On-camera status indicator
On-camera status indicator
Monitor camera health and activity based on a ring of customizable RGB LEDs mounted on the camera face. As camera status changes, so does the indicator ring.
On-camera image processing
On-camera image processing
Our low latency, on-camera image analysis delivers clean, reliable data to your PC for efficient marker solving and reference video. Image processing types include:
Object
Performs on-camera detection of marker location, size, and roundness using our most precise grayscale processing methods. Provides excellent precision with the smallest CPU footprint.
Segment
Like precision grayscale processing, segment mode divides processing between the camera and CPU, providing streamlined marker information for CPU-efficient marker detection. Provides a balance between precision and processing load.
MJPEG
Down-sampled (1/10th) grayscale frames, compressed on-camera for highly scalable reference video capabilities.
Raw grayscale
Full resolution, uncompressed grayscale.
Synchronized, calibrated reference video
Synchronized, calibrated reference video
As with all OptiTrack cameras, any Prime 13W can be converted from a tracking camera into a synchronized, calibrated reference camera with a single mouse click. Because the cameras remain calibrated while in reference mode, 3D data can be overlaid on the video for real-time previs and assistance with post.
On-camera MJPEG compression
On-camera MJPEG compression
MJPEG compression delivers full frame-rate video with 1/10th the bandwidth of raw grayscale, enabling numerous cameras to operate in reference mode, simultaneously.
Synchronize to external devices
Synchronize to external devices
Synchronize to almost any signal or source with the eSync 2. Cameras can be in sync to sources such as a professional video Genlock signal, and can also be triggered to record from general purpose inputs and software commands. Use the sync output signal or trigger with a DAQ for biomechanical force plate data alignment. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging.
OEM & computer vision integration
OEM & computer vision integration
Incorporate Prime 13W cameras into OEM or computer vision applications via the free , a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, and camera synchronization.
Camera SDK
Prime 13W
$2,499Prime 13W
Image Sensor
Resolution
1280 × 1024
Latency
4.2 ms
Global Shutter
Default Speed
500 µs (0.5 ms)
Minimum Speed
10 µs (0.01 ms)
Maximum Speed
3900 µs (3.9 ms) at 240 FPS
Image Processing Types
Object
Segment
Raw Grayscale
MJPEG Grayscale
- MJPEG is downsampled to 1/4 resolution (640×512)
LED Ring
10 ultra high power LEDs
850 nm IR
Connections
GigE/PoE (1000BASE-T)
PoE Power
Ethernet camera sync
Filter & Lens
Filter Switcher
800nm (IR) / 700nm (Visible)
Stock Lens
3.5mm F#2.4 (wide band AR coated)
- Horizontal FOV: 82°
- Vertical FOV: 70°
Optional Lens
4.5mm F#2.2
- Horizontal FOV: 70°
- Vertical FOV: 58°
Size & Weight
Width
2.7 inches (6.86 cm)
Depth
2.2 inches (5.6 cm)
Weight
0.7 pounds (0.32 kg)
Camera Body
1/4”-20 tripod thread (×2)
- 2 digit numeric LEDs
- Full-color LED health and activity indicator
In the Box
- 1 Prime 13W Camera Part number: P13W
- 1 Quick Start Guide
System Requirements
Recommended system requirements can vary significantly based on camera model and count. Please visit the to find system recommendations tailored to your specific setup.
system builder tool
Prime 13W
Prime 13W
$2,499
Part number: P13W
Accessories
Prime 13W Focus ToolPart number: ACC0034$25For focusing the lens on Prime 13W cameras.
